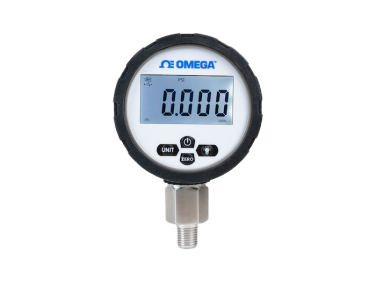

Omega Advanced, Digital Pressure Gauge with Data Logging
2233-HW-Omega-004
DPG280-100G
| Over Pressure | 1.5X for ranges <10,000 psi |
| Wetted Parts | 304 SS |
| Display Type | LCD, 5 digits |
| Sampling Rate | Adjustable: 1 sample/second to 1 sample/hour |
| Backlight | Yes - White |
| Compensation Temperature | -0 to 60°C (32 to 140°F) |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Pressure Accuracy | ± 0.25% FS |
| Stability | ± 0.2%FS/year |
| Power | Battery (Two AAA Batteries) |
| Process Media | Non-corrosive gas and liquid media |
| Case Material | 304 SS |
| Electrical Protection | EN61326 |
| Overload Pressure | 1.5X for ranges <10 |
| Weight | 1.2kg (2.6 lbs) |
The DPG280 series are robust, digital pressure gauges that feature data logging capabilities. Store up to 10,000 points; sample rate is adjustable and can be logged as fast as one measurement per second or as slow as one measurement every hour. Recorded data is accessible by utilizing a USB connection and easy-to-use software that make data analysis straightforward. There are several additional features that add to the usability of this series. There are five selectable engineering pressure units, a zero function, peak measurement display, and bright white backlight. Also displayed is a visual bar to quickly show percentage of rated pressure being utilized and the battery level of the unit to help prevent a unit unexpectedly losing power. These units can measure a wide variety of gasses and liquids that are non-corrosive and compatible with 304 stainless steel.
