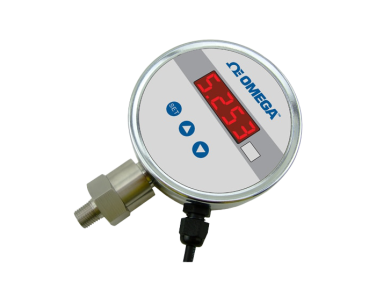

Omega AC Powered, Digital Pressure Gauge
2248-HW-Omega-019
DPG101-015G
Overview
DPG101 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane.
| Display Units | Gauge can be factory scaled to any engineering unit such as psi, kPa, bar, mbar, inHg, inH2O, mmHg, ftH2O, torr, kg/cm3 |
| Measuring Range | -0.1 to 35 MPa (-14.50 to 5000 psi) |
| Display Type | 4-digit LED |
| Accuracy | 0.25% FS for gauge pressure >5psi |
| Power | 85 to 265 Vac |
| Stability | <0.1% FS per year |
| Case Protection | IP65 |
| Operating Temperature | -30 to 80ºC (-22 to 176ºF) |
| Operating Humidity | <90% |
| Media Temperature Limits | -40 to 150ºC (-40 to 302ºF) [equip with cooling element accessory if media temperature is greater than 80ºC (176ºF)] |
| Process Connection | ¼" NPT, others consult Omega |
| Wetted Parts | 316 SS threads, NBR O-ring |
| Storage Temperature | -20 to 70ºC (-4 to 160ºF), less than 80% relative humidity |
DPG101 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane. The output signal is amplified by a high-precision, low-temperature drift amplifier. The signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.
This flexible, simple to operate digital pressure gauge is safe, reliable, and easy to maintain. The DPG101 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.
4-Digit High Resolution LED Digital Display. All Stainless-Steel Construction. Gage, Absolute, Compound, and Vacuum Ranges Available. 0.25% FS Terminal Point Accuracy
