Model-475-1T Digital Manometer Kit 0-20 inH2O ± 0.5% Accuracy, LCD, Pitot Tube, Tips
-
NG # 2257-HW-Omega-028
Manufactured by:
Specification

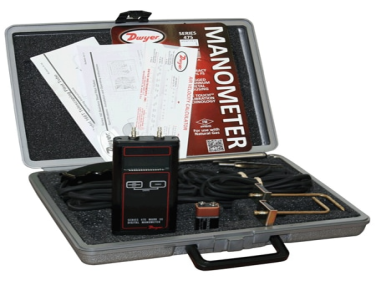

Complete Kit Includes:
Series 475 Handheld Digital Manometer
Model 166T, 36 ̋ telescoping SS pitot tube, fully adjustable from 11.5" to 36" (29.2 to 91.4 cm)
Two No. A-303 Static Pressure Tips with Magnetic Mounting
Two 4-1/2 Ft. Lengths 3/16" I.D. Rubber Tubing
No. A-397 Step Drill for 3/16" - 1/2" Holes in 1/16" Increments
No. A-532 AV Slide Chart
9 V Alkaline Battery
Fitted Polyethylene Case
Product Applications
- Building commissioning
- Building HVAC test and balance
- Critical environment testing
- Industrial process verification
- Instrumentation validation
Description
Convenient all-in-one kit is small, light and easy to use. No set-up or leveling needed. Digital manometer reads from 0-20.00" w.c. with ±0.5% F.S. accuracy and minor divisions to 0.01. Large 1/2" LCD readout is easy to see in poorly lighted areas and has "low battery" warning. Kit includes convenient telescoping Pitot tube, Model 166T, fully adjustable from 11.5 to 36 inches (29.2 to 91.4 cm). Also, two static pressure tips with magnetic mounting measure pressure drop across filters, condenser coils, etc. An indispensable test kit for the plant engineer, industrial hygienist and HVAC technician.
