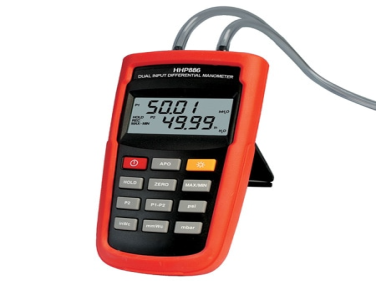

HHP886-Series Manometer with Datalogging and USB
-
NG # 2251-HW-Omega-022
Manufactured by:
Specification
Measurement Range and Resolution:
psi: ±2.0000
mbar: ±150.00
inH2O: ±60.00
mmH2O: ±1500.0
Accuracy: ±1.5% FS @ 23 ±5 °C, < 75% RH
Operating Temperature: 0 to 50 °C (32 to 122 °F)
Compatible Media: Clean, dry, non-corrosive gases
Battery: 4 "AAA" (included)
Battery Life: 200 hours (low battery indicator on display)
Auto Power Off: When enabled by user unit will power off after 15 minutes with no buttons pressed
Transmit Distance: 25 m (82') without magnetic interference
Pressure Ports: Hose barbs for 4 mm ID flexible tubing (included)
Dimensions: 177 H x 83 W x 40 mm D (7.0 x 3.3 x 1.6")
Weight: 230 g (8.1 oz) (including batteries)
Description
Omega's HHP886 Series manometers feature a dual pressure input (P1 and P2) and a dual display which can be set to simultaneously display P1 and P2 or P1 and the differential pressure (P1 - P2). Pressure is displayed in one of four user selectable units and a record function will store the MAX, MIN, MAX-MIN and AVG pressure for each channel for later viewing. Models are also available with a USB connection or wireless interface for real time data logging to a computer. Software allows the user to display the data in a graphical format or export the data to Excel or text files for further manipulation.
