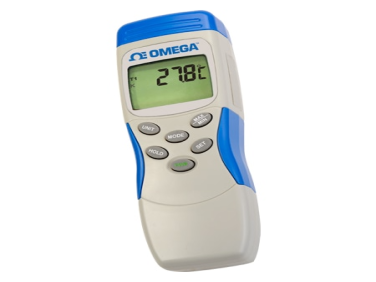

HH25U-Series 1 Channel High Accuracy 0.1% Type K, J, T Thermocouple Meter
-
NG # 2264-HW-Omega-035
Manufactured by:
Specification
Input: Single K/J/T
Temperature Range K: -200 to 1370ºC (-328 to 2498ºF)
Resolution (K): 0.1ºC (0.1ºF), over 1000ºC 1ºC/1ºF
Accuracy (K): ± (0.1% rdg + 0.5°C) for -50 to 1370°C others ± (0.1% rdg + 2°C)
Temperature Range J: -80 to 760ºC (-112 to 1400ºF)
Accuracy (J): ± 1% of rdg + 1ºC/2ºF
Temperature Range T: -80 to 400ºC (-112 to 752ºF)
Accuracy (T): ± 1% of rdg + 1% 200 to 400ºC, others ± 0.4% rdg + 0.6 ºC/1.2ºF
Temperature Coefficient: 0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)
Function: Max/Min. hold
Power: 9V battery
Dimensions: 159 L x 55 W x 38 D mm (6.25 x 2.16 x 1.49")
Weight: 170 g (6 oz)
Operating Temperature: -10 to 50ºC (14 to 122ºF)
Description
The HH-25U handheld thermocouple thermometers feature Type K, J, T thermocouple inputs and are available in single input models. The HH-25U is a single-input model that has an auto range resolution of 0.1 or 1°. are °C/°F switchable, and maximum/Minimum reading/display hold functions and low battery indicator. Offered at an economical price.
