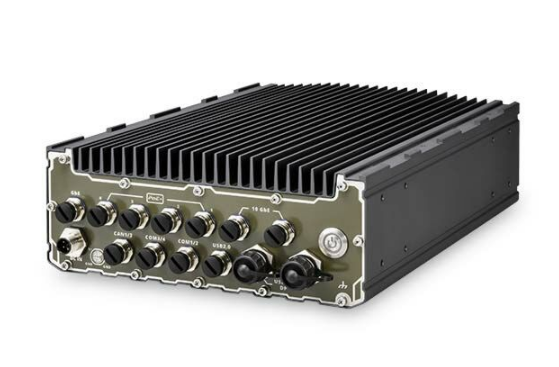

SEMIL-2000: IP69K Waterproof 2U 19"/2 Rack Mount Supporting Intel 14th/13th/12th-Gen Core Processor with 2x M12 10GbE and 4x M12 PoE+
-
NG # 004956-HW-Neousys-056
Manufactured by:
SEMIL-2000 is an extreme-rugged embedded platform with IP69K dustproof and waterproof design in a 2U 19"/2 rack-mount form factor. SEMIL- 2000GC features Neousys' best-in-class thermal design to ensure fanless operation from -40°C to 70°C wide-range temperatures, two 5Gbps Type-C ports with alternative DisplayPort signal outputs.
Specification
Supporting Intel 13th-Gen Core CPU (LGA1700 socket, 65W/35W TDP) Supporting Intel 12th-Gen Core CPU (LGA1700 socket, 65W/35W TDP)Manufacturer Neousys Short Description SEMIL-2000 is an extreme-rugged embedded platform with IP69K dustproof and waterproof design in a 2U 19"/2 rack-mount form factor. SEMIL- 2000GC features Neousys' best-in-class thermal design to ensure fanless operation from -40°C to 70°C wide-range temperatures, two 5Gbps Type-C ports with alternative DisplayPort signal outputs. Processor
- Intel Core i9-13900E/i9-13900TE
- Intel Core i7-13700E/i7-13700TE
- Intel Core i5-13500E/i5-13400E/i5-13500TE
- Intel Core i3-13100E/i3-13100TE
- Intel Core i9-12900E/i9-12900TE
- Intel Core i7-12700E/i7-12700TE
- Intel Core i5-12500E/i5-12500TE
- Intel Core i3-12100E/i3-12100TE
- Intel Pentium G7400E/G7400TE
- Intel Celeron G6900E/G6900TEGraphics Integrated Intel UHD Graphics 770 (32EU) Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) Chipset Intel Q670E platform controller hub AMT Supports Intel vPro/AMT 16.0 PoE 4x IEEE 802.3at PoE+ PSE with 100 W total power budget Video Port 2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1) M.2 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD Mini PCI-E 3x full-size mini PCI Express socket with SIM slot SATA HDD 2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 mSATA 2x full mSATA internal 2.5" Drive 2x SATAIII internal DC Input 8V to 48V DC input, with reverse polarity protection (M12 L-coded) Power Adapter 280-480W Power Input Voltage 8-48V DC Power Type DC Fan Fanless Dimension 220mm (W) x 310mm (D) x 90.5mm (H) Weight 6kg Mounting Rack-mounting (standard) and wall-mounting (standard) Operating Temperature With 35W CPU
-40°C to 70°C
With CPU operating >= 65W CPU
-40°C to 70°C (configured as 35W TDP mode)
-40°C to 60°C (configured as 65W TDP mode)Storage Temperature -40°C ~85°C Humidity 10%~90% , non-condensing Vibration MIL-STD-810H, 514.8C-IV. Category 4 Shock MIL-STD-810H, 516.8 Procedure I EMC EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55024CPU Cores 6, 8 CPU Family Intel Core, Intel Xeon Base CPU Speed 3.1 to 3.5 GHz, Over 3.5 GHz Video Output Display Port, VGA PoE Ports 4 Serial Ports 3-4 USB 2.0 3-4 USB 3.0 3-4 Max Memory 64 GB Operating System Windows 10, Linux Effective Memory Speed 2400 MHz, 2666 MHz Form Factor Fanless Native Storage Type 2.5" SSD, mSATA Full, M.2 SATA S80 On/Ignition Built In Ignition Control
Description
SEMIL-2000 is an extreme-rugged embedded platform with IP69K dustproof and waterproof design in a 2U 19"/2 rack-mount form factor. SEMIL-2000GC features Neousys' best-in-class thermal design to ensure fanless operation from -40°C to 70°C wide-range temperatures, two 5Gbps Type-C ports with alternative DisplayPort signal outputs.
SEMIL-2000 is powered by Intel’s 14th/13th/12th-Gen platform. The platform benefits from Intel 7 photolithography, the latest Core desktop processors come with a hybrid configuration consisting of performance and efficient cores, and it can support up to 64GB DDR5 memory.
The system adopts a corrosion-proof stainless steel and aluminum chassis to counteract moisture and salinity. Utilizing all M12 connectors to guarantee extreme-rugged connection in shock and vibration environments, it offers a variety of I/O connectivity, two CAN bus 2.0 with SocketCAN driver, two USB 3.2, seven Ethernet (including two 10GbE), and four 802.3at PoE+ ports to supply 25.5W of power per port to connected compatible devices. Internal expansion-wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-2000 features two 2.5" SATA SDD/ HDD accommodations, 8-48V wide-range DC input with ignition power control, and it complies with MIL-STD-810H standards.
