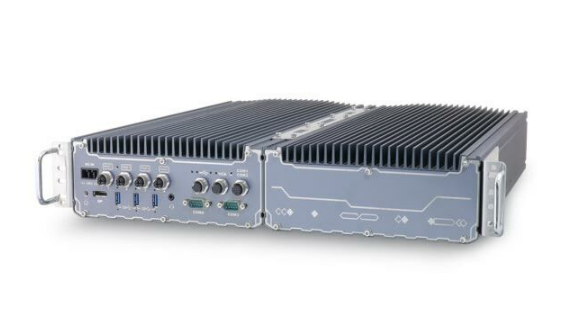

SEMIL-1300: Half Rack Rugged Fanless Computers with M12 Connectors
004985-HW-Neousys-085
Overview
SEMIL-1300GC series is the world’s first wide-temperature fanless edge AI computer supporting NVIDIA 2000 Ada for demanding environments. Coupled with Intel Xeon E or 9th/ 8th-Gen Core CPU, the system delivers excellent CPU and GPU performances for modern edge AI applications. SEMIL-1300GC series features Neousys’ patented thermal system architecture* to guarantee -40°C to 70°C fanless operation in a rack-mountable or wall-mountable 2U 19” enclosure.
| Manufacturer | Neousys |
|---|---|
| Short Description | SEMIL-1300GC series is the world’s first wide-temperature fanless edge AI computer supporting NVIDIA 2000 Ada for demanding environments. Coupled with Intel Xeon E or 9th/ 8th-Gen Core CPU, the system delivers excellent CPU and GPU performances for modern edge AI applications. SEMIL-1300GC series features Neousys’ patented thermal system architecture* to guarantee -40°C to 70°C fanless operation in a rack-mountable or wall-mountable 2U 19” enclosure. |
| Processor | Supporting Intel Xeon E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
| Graphics | Integrated Intel UHD Graphics 630 |
| Memory | Up to 64 GB ECC/ non ECC DDR4-2666/ 2400 SDRAM (two SODIMM sockets) |
| Chipset | Intel C246 platform controller hub |
| AMT | Supports AMT 12.0 |
| PoE | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel I210 (M12 X-coded) |
| Video Port | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel Optane memory installation |
| Mini PCI-E | 2x full-size mini PCI Express sockets (mux with mSATA) 1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module 1x M.2 2242/ 2252 E key for selected WiFi module |
| SATA HDD | 2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/1 |
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 8 to 48V DC input |
| Power Type | DC |
| Fan | Fanless |
| Dimension | 440mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket) |
| Weight | 12 kg |
| Mounting | Rack-mounting and wall-mounting |
| Operating Temperature | With 35W CPU: With >= 65W CPU: 2 For Xeon E 2176G/ 2278GE, i7-9700E, and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperatures. |
| Storage Temperature | -40°C~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810G, Method 514.7, Category 4 |
| Shock | MIL-STD-810G, Method 516.7, Procedure I |
| EMC | EN 50121 (EN 50155 EMC) EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Cores | 6, 8 |
| CPU Family | Intel Core, Intel Xeon |
| Base CPU Speed | 3.1 to 3.5 GHz, Over 3.5 GHz |
| Video Output | Display Port, VGA |
| PoE Ports | 4 |
| Serial Ports | 3-4 |
| USB 2.0 | 3-4 |
| USB 3.0 | 3-4 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 2400 MHz, 2666 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, mSATA Full, M.2 SATA S80 |
| On/Ignition | Built In Ignition Control |
SEMIL-1300GC series is the world’s first wide-temperature fanless edge AI computer supporting NVIDIA 2000 Ada for demanding environments. Coupled with Intel Xeon E or 9th/ 8th-Gen Core CPU, the system delivers excellent CPU and GPU performances for modern edge AI applications. SEMIL-1300GC series features Neousys’ patented thermal system architecture* to guarantee -40°C to 70°C fanless operation in a rack-mountable or wall-mountable 2U 19” enclosure.
SEMIL-1300GC series features an advanced passive cooling design to ensure the CPU/ GPU does not throttle when operating in high-temperature environments. Compatible with an RTX 2000 Ada GPU, users can utilize the scalable GPU performance that offers up to 12.0 TFLOPS in FP32 or 191.9 TOPS in INT8. The system leverages M12 connectors for Gigabit PoE+, USB 2.0, VGA, and COM ports to offer rugged cable connectivity. Other high-speed computer I/Os include DisplayPort, USB 3.1 Gen1, optional 10G Ethernet, and storage interfaces such as an M.2 for NVMe SSD and SATA ports, making SEMIL-1300GC expandable and versatile.
