POC-764VR Intel Core i3-N305 Fanless Surveillance System with 4x PoE+ and 2x 2.5” SSD Supporting RAID 0/1
-
NG # 004951-HW-Neousys-051
Manufactured by:

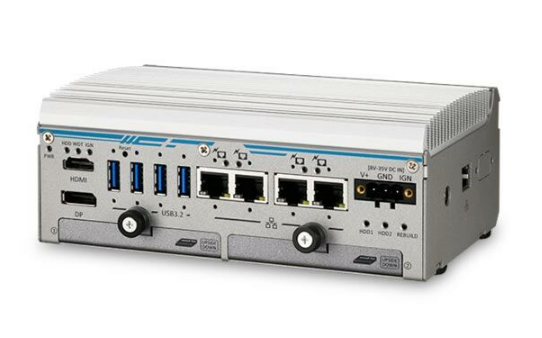

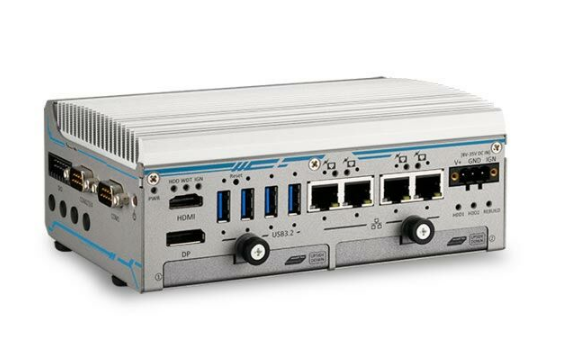

The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart-city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments.
Specification
With FAN Kit: -10°C ~ 70°C 1 2 1 For sub-zero and over 55°C operating temperature, a wide temperature Solid State Disk (SSD) is required.Manufacturer Neousys Short Description The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart-city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments. Processor Intel Alder Lake CoreTM i3-N305 processor(8C/8T, 1.8/3.8 GHz, 15W TDP) Graphics Integrated Intel UHD Graphics with 32EUs Memory Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) PoE IEEE 802.3at PoE+ on port #1~ 4 Video Port 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz DIO 4-CH isolated DI and 4-CH isolated DO M.2 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal) Mini PCI-E 2x full-size mini PCI Express socket with internal micro SIM socket SATA 2x internal SATA port for 2.5” SSD installation, supporting hardware RAID 0/ 1/ JBOD (with hot-swappable functionality in RAID1 mode only) DC Input 1x 3-pin pluggable terminal block for 8 to 35V DC input with built-in ignition power control Dimension 175.8mm (W) x 115.5mm (D) x 67.9mm (H) Weight 1.45 kg Mounting DIN-rail mount (standard) or wall-mount (optional) Operating Temperature
Without FAN Kit: -10°C ~ 55°C 1
2 The optional fan kit is recommended for operating at ambient temperatures above 55°C.Storage Temperature -40°C to 85°C Humidity 10% to 90% , non-condensing Vibration MIL-STD-810H, Method 514.8, Category 4 Shock MIL-STD-810H, Method 516.8, Procedure I EMC CE/FCC Class A, according to EN 55032 & EN 55035
Description
The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart-city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments.
Featuring four Gigabit PoE+ ports and an ignition function, the POC-764VR can connect up to four IP cameras for both mobile and stationary surveillance applications. Its RJ45 locking mechanism guarantees reliable Ethernet connectivity in dynamic environments. It has a built-in hardware RAID controller for video recording that supports dual 2.5" HDD/SSDs in RAID 0/1 configuration, enhancing data redundancy or providing extensive storage capacity. A 2.5 GbE port also offers flexible data exchange with backbone infrastructure, while two mini-PCIe sockets support wireless WiFi, LTE/5G, or CAN bus devices.
The POC-764VR is powered by an Intel® Alder Lake CoreTM i3-N305 8-core/8-thread processor with 32EUs UHD Graphics. This processor delivers significant computing performance and enables real-time AI inference through Intel OpenVINO. Its compact size, PoE+ capabilities, and RAID storage make the POC-764VR an ideal platform for surveillance, public safety monitoring, and asset management applications.
