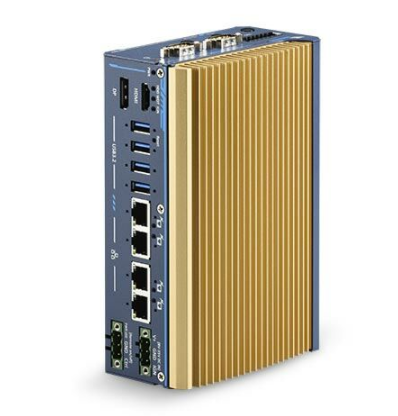

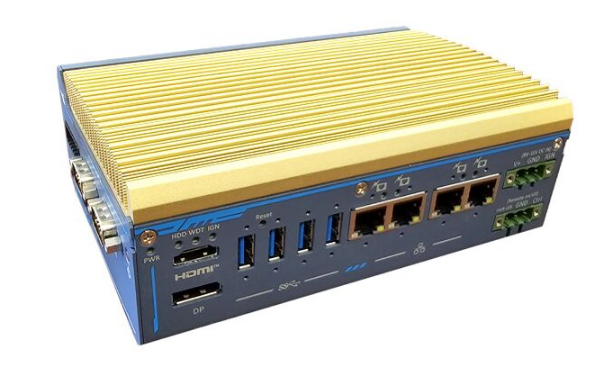

POC-700: Intel Core i3-N305/Atom x7425E Ultra-Compact Embedded Computer with 4x PoE+, USB 3.2, and MezIO Interface
004960-HW-Neousys-060
Overview
POC-700 is Neousys’ next-generation ultra-compact embedded controller, with a choice of the latest Intel Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series.
| Manufacturer | Neousys |
|---|---|
| Short Description | POC-700 is Neousys’ next-generation ultra-compact embedded controller, with a choice of the latest Intel Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series. |
| Processor | POC-715: Intel Alder Lake Core i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP) POC-712: Intel Alder Lake Atom x7425E processor (4C/4T, 1.5 /3.4 GHz, 12W TDP) |
| Graphics | POC-715: Integrated Intel UHD Graphics with 32EUs POC-712: Integrated Intel UHD Graphics with 24EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| PoE | IEEE 802.3at PoE+ on port #1~4 |
| Video Port | 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal) |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal micro SIM socket |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input 1x 3-pin pluggable terminal block for 12 to 35V DC input (UL series) |
| Fan | Optional external-accessible 80mm x 80mm fan for system heat dissipation |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 64 (W) x 116 (D) x 176 (H) mm |
| Weight | 1.2 kg |
| Mounting | DIN-rail mount (standard) or wall-mount (optional) |
| Operating Temperature | -25°C ~ 70°C* * For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required. |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.6, Category 4 |
| Shock | MIL-STD-810H, Method 516.6, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Cores | 4, 8 |
| CPU Family | Intel Atom, Intel Core |
| Base CPU Speed | Under 2.0 Ghz |
| Video Output | Display Port, HDMI |
| PoE Ports | 4 |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| USB 3.2 | 1 - 4 |
| Max Memory | 16 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 4800 MHz |
| Form Factor | Fanless |
| Native Storage Type | M.2 NVMe SSD |
| On/Ignition | Remote On/Off |
POC-700 is Neousys’ next-generation ultra-compact embedded controller, with a choice of the latest Intel Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series.
Neousys POC-700 is powered by Intel’s Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics or Atom x7425E featuring 4-core/ 4-thread with 24EUs UHD Graphics to support Intel OpenVINOTM for AI inference capabilities. The systems adopts DDR5-4800 to offer up to 1.8x the memory bandwidth over DDR4 to boost overall system performance. It also has four USB3.2 Gen2, and four GigE PoE+ ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Display output wise, there are HDMI and DP video outputs to support high-definition display devices. As for connections and expansions, POC-700 features isolated DIO for device monitoring/control, M.2 2280 M key for SATA SSD and a mini-PCIe socket for wireless WiFi, LTE/5G or CAN bus device.
