POC-40+ Intel Elkhart Lake Atom x6413E Extreme-Compact Embedded Computer with 2x GbE and 2x USB 3.1
-
NG # 004959-HW-Neousys-059
Manufactured by:

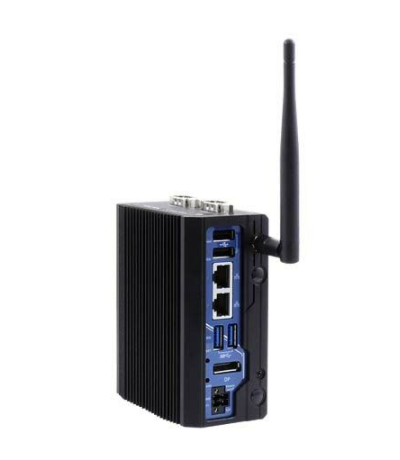

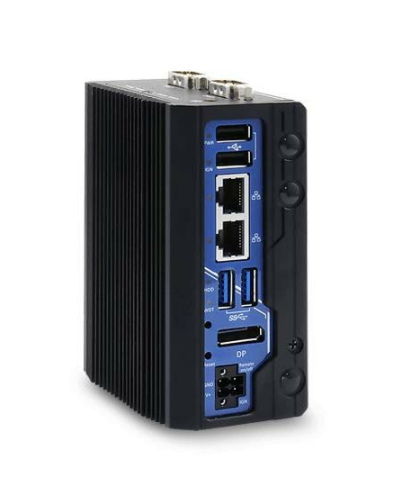

POC-40 Series is an extremely compact fanless computer with dimensions measuring just 52 x 89 x 112 mm. It features Elkhart Lake Atom processor and is designed for space-restricted applications such as factory data collection, rugged edge computing and mobile gateway.
Specification
Product Available On Sep 21, 2023 Manufacturer Neousys Short Description POC-40 Series is an extremely compact fanless computer with dimensions measuring just 52 x 89 x 112 mm. It features Elkhart Lake Atom processor and is designed for space-restricted applications such as factory data collection, rugged edge computing and mobile gateway. Processor Intel Atom x6413E quad-core 1.5GHz/ 3.0GHz 9W processor Graphics Integrated Intel UHD Graphics Memory Up to 32 GB DDR4-3200 SDRAM (one SODIMM slot) Video Port 1x DisplayPort connector, supporting 4096 x 2160 resolution @ 60Hz DIO 4-ch isolated digital input and 4-ch isolated digital output M.2 1x M.2 2280 M key SATA interface Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket DC Input 1x 4-pin pluggable terminal block for 12-20V DC input with optional ignition power control Remote Ctrl. & Status Output 1x 4-pin pluggable terminal block for remote control Dimension 52 mm (W) x 89 mm (D) x 112 mm (H) Weight 0.6 kg Mounting DIN-rail mount (standard) or Wall-mount (optional) Operating Temperature -25°C ~ 60°C Storage Temperature -40°C ~85°C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II EMC CE/FCC Class A, according to EN 55032 & EN 55024
Description
POC-40 Series is an extremely compact fanless computer with dimensions measuring just 52 x 89 x 112 mm. It features Elkhart Lake Atom processor and is designed for space-restricted applications such as factory data collection, rugged edge computing and mobile gateway.
Utilizing Intel’s 10nm process technology, the new Elkhart Lake Atom® x6211E and x6413E processor can deliver up to 1.8 times the performance boost over its previous generation. In comparison to POC-200, POC-40 provides 1.9 times computing performance at only half the size. It features generic I/O functions, such as two Gigabit Ethernet ports, four USB 3.1 Gen1/ 2.0 ports, four COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting dedicated M.2 B key and E key slots, the POC-40 can fully harness the bandwidth of 5G and WiFi 6 wireless communications to provide wide-area coverage and real-time data transmission for industrial and mobile gateway applications.
