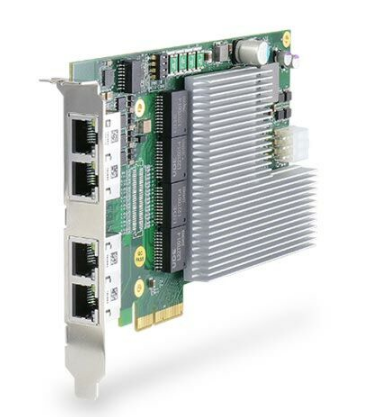

PCIe-PoE425bt: 4-Port 2.5G BASE-T Network Adapter with IEEE 802.3bt PoE++ Capability
-
NG # 004980-HW-Neousys-080
Manufactured by:
Introducing one of the world’s first 2.5G Ethernet cards featuring IEEE 802.3bt PoE++ PSE capability! The PCIe-PoE425bt is a 4-port 2.5GBASE-T PoE++ card leveraging the cutting-edge Intel I226-IT controller. It complies with IEEE 802bz standard to provide 2.5 Gbps bandwidth and is backward compatible with 1000BASE-T, 100BASE-TX, and 10BASE-TE Ethernet.
Specification
Manufacturer Neousys Short Description Introducing one of the world’s first 2.5G Ethernet cards featuring IEEE 802.3bt PoE++ PSE capability! The PCIe-PoE425bt is a 4-port 2.5GBASE-T PoE++ card leveraging the cutting-edge Intel I226-IT controller. It complies with IEEE 802bz standard to provide 2.5 Gbps bandwidth and is backward compatible with 1000BASE-T, 100BASE-TX, and 10BASE-TE Ethernet. PoE In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximal 90W output on a single PoE++ port
Compatible with 802.3at (PoE+) and 802.3af (PoE) PDEthernet Standard 4x RJ-45 connectors Power Adapter Jumper-select 12VDC input
Maximum 5.5A@12V (66W) from PCIe gold finger connector
Maximum 12A@12V (144W) from on-board 6-pin PCIe power connectorDimension 167.7mm (L) x 111.2mm (H) x 18.2mm (W) Operating Temperature 0°C ~ 50°C with airflow (802.3bt mode) 0°C ~ 55°C with airflow (802.3at mode) EMC CE Class A, according to EN 55032/55035 FCC Class A, according to FCC Part 15, Subpart B # of Port 4x 2.5G Ethernet ports by four Intel I226-IT controllers, supporting 9.5 kB jumbo frame, teaming, and IEEE 1588 Bus Interface x4, Gen2 PCI Express Cable Requirements 100 meters over CAT-5e or better Ethernet cable PoE Ports 4 LAN Ports 1-4 Operating System Windows 7, Windows 10, Linux
Description
Introducing one of the world’s first 2.5G Ethernet cards featuring IEEE 802.3bt PoE++ PSE capability! The PCIe-PoE425bt is a 4-port 2.5GBASE-T PoE++ card leveraging the cutting-edge Intel I226-IT controller. It complies with IEEE 802bz standard to provide 2.5 Gbps bandwidth and is backward compatible with 1000BASE-T, 100BASE-TX, and 10BASE-TE Ethernet.
In addition to the increase in bandwidth, the PCIe-PoE425bt also features IEEE 802.3bt PSE capability. IEEE 802.3bt, or PoE++, is the latest addition to Power over Ethernet specifications, allowing a single port to provide up to 90W of power supplied to PD over a standard CAT-5e or CAT-6 Ethernet cable. While COTS high PoE PTZ cameras and outdoor WIFI access points may require higher power than 30W, the PCIe-PoE425bt is particularly useful for directly connecting and powering these devices without an external PoE++ injector.
