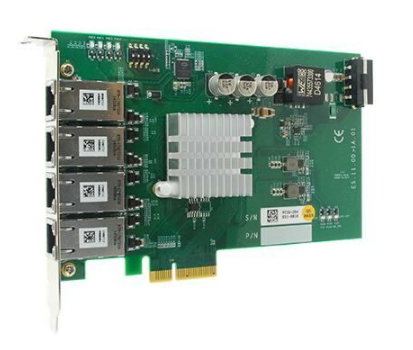

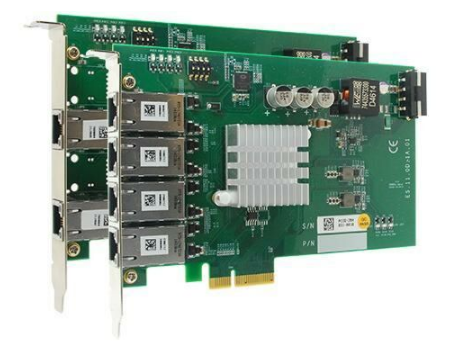

PCIe-PoE354at/PoE352at: 4-Port/2-Port Server-Grade Gigabit 802.3at PoE+ Frame Grabber Card
-
NG # 004962-HW-Neousys-062
Manufactured by:
PCIe-PoE354/2at are the world’s first PoE frame grabber cards combining server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys’ expertise on PoE technology, PCIe-PoE354/2at further incorporates the updated 802.3at-2009 standard and offers up to 25.5W in each port.
Specification
Manufacturer Neousys Short Description PCIe-PoE354/2at are the world’s first PoE frame grabber cards combining server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys’ expertise on PoE technology, PCIe-PoE354/2at further incorporates the updated 802.3at-2009 standard and offers up to 25.5W in each port. PoE In compliant with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power Dimension 168 mm (W) x 111 mm (H) Operating Temperature 0°C ~ 55°C Power Consumption PCIe-PoE354at: Maximum 1.2A @ 3.3V from PCI Express bus, Maximum 5.5A @ 12V from PCI Express bus or on-board 4-pin power connector*
PCIe-PoE352at: Maximum 0.9A @ 3.3V from PCI Express bus, Maximum 4.8A @ 12V from PCI Express bus**CPU Cores 8 CPU Family Jetson AGX Orin Base CPU Speed Under 2.0 Ghz Video Output Display Port LAN Ports 1-4 Serial Ports 1-2 USB 3.1 5-8 Max Memory 16 GB Operating System NVIDIA JetPack 5.0.2 Effective Memory Speed 3200 MHz Native Storage Type M.2 NVMe SSD
Description
PCIe-PoE354/2at is the world’s first PoE frame grabber card combining server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys’ expertise on PoE technology, PCIe-PoE354/2at further incorporates the updated 802.3at-2009 standard and offers up to 25.5W of power each port. PCIe-PoE354/2at is designed with Intel® I350 Gigabit Ethernet controller. This server-grade GigE controller incorporates advanced features such as checksum offloading, segmentation offloading and intelligent interrupt generation/ moderation to increase overall Ethernet performance and reduce CPU utilization. In addition, its single-bus, multi-port topology minimizes compatibility issues with off-the-shelf motherboards when installing multiple cards.
