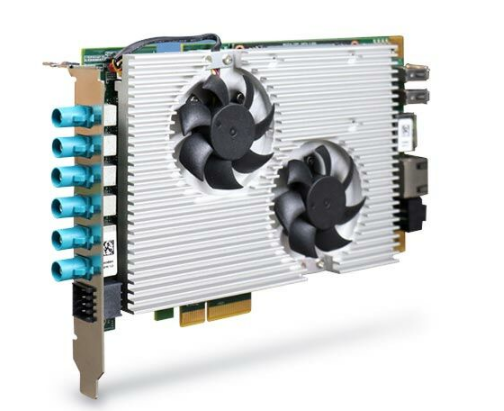

PCIe-GL26: NVIDIA Jetson Xavier NX AI-Enabled 6-Port GMSL2 Camera Frame Grabber Card
004966-HW-Neousys-066
Overview
PCIe-GL26 is an AI-enabled automotive six-port GMSL2 camera frame grabber card. It is a turnkey industrial-grade frame grabber solution that incorporates drivers for selected GMSL2 cameras with video streaming sample codes.
| Manufacturer | Neousys |
|---|---|
| Short Description | PCIe-GL26 is an AI-enabled automotive six-port GMSL2 camera frame grabber card. It is a turnkey industrial-grade frame grabber solution that incorporates drivers for selected GMSL2 cameras with video streaming sample codes. |
| Processor | NVIDIA Jetson Xavier NX System-on-Module (SOM), comprising of NVIDIA Volta GPU and Carmel CPU |
| Memory | 8GB/ 16GB LPDDR4x (Xavier NX 8GB/ 16GB) @ 1600/ 1866 MHz (15W/ 20W TDP mode) |
| Video Port | 1x DisplayPort, supporting 3840x2160 at 60Hz |
| DIO | 1x GPS PPS input |
| M.2 | 1x M.2 2242 M key socket (PCIe Gen3 x1) for NVMe SSD |
| DC Input | 12V DC power input (for development only) |
| Dimension | 167.7 mm (W) x 111 mm (H) |
| Weight | 0.43kg |
| Operating Temperature | -25°C to 60°C with airflow (20W TDP mode) * * For sub-zero and over 60°C operating temperature, a wide temperature NVMe is required |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| EMC | CE Class A, according to EN 55032/55035 (pending) FCC Class A, according to FCC Part 15, Subpart B (pending) |
| CPU Family | Jetson AGX Xavier |
| Video Output | Display Port |
| USB 2.0 | 1-2 |
| Max Memory | 8 GB, 16 GB |
| Effective Memory Speed | 1600 MHz, 1866 MHz |
PCIe-GL26 aims to provide superior outdoor vision capability with automotive GMSL2 camera connectivity to advanced x86 autonomous vehicle computing platforms. Automotive GMSL2 cameras are ideal for autonomous vehicle applications due to their advanced features, such as IP67 waterproof, high dynamic range (120dB HDR), auto white balance (AWB), and LED flicker mitigation (LFM). It also benefits computer vision applications in outdoor environments where illumination conditions are constantly changing. Powerful x86 computers with PCIe-GL26 can obtain high-quality images with minimal latency regardless of lighting conditions, from bright sunny days to pitch-black nights.
