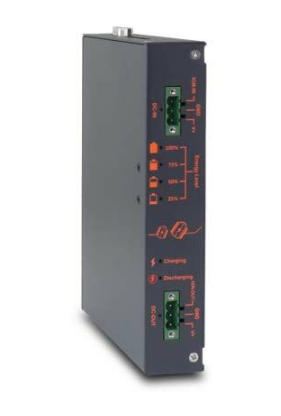

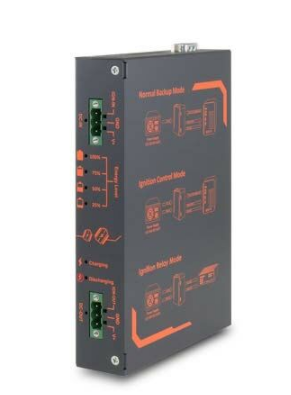

PB-2580J-SA: Industrial-Grade Standalone Intelligent Supercapacitor-Based Uninterruptible Power Backup Module 2580Ws
-
NG # 004957-HW-Neousys-057
Manufactured by:
The PB series is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25°C to 65°C and have extremely high durability lasting over 10 years.
PB-9250J-SA and PB-4600J-SA are composed of eight and four 370F/ 3.0V supercapacitors, respectively, while PB-2580J-SA is composed of eight 100F/ 2.7V supercapacitors. They each offer 9250, 4600 and 2580 watt-second energy to offer extra extended operation time to backup your system.
Specification
View SuperCap UPS Backup Modules The PB series is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25°C to 65°C and have extremely high durability lasting over 10 years.Manufacturer Neousys Short Description Power Input Voltage 12 to 35V DC Dimension 32.8mm(W) x176.6mm(H) x126mm(D) Weight 0.93 kg Input Connector 1x 3-pin pluggable terminal block (V+, GND, IGN_IN) Mounting DIN-rail mount (standard) or Wall-mount (optional) Operating Temperature -25°C ~ 65°C
-40°C ~ 85°C with reduced energy capacityStorage Temperature -40°C ~ 85°C Vibration Operating, MILSTD-810G, Method 514.6, Category 4 Shock Operating, MILSTD-810G, Method 516.6, Procedure I, Table 516.6-II EMC CE/FCC Class A, according to EN 55032 & EN 55024 Operation Voltage Charge mode: DC_IN bypass (DC_OUT = DC_IN)
Discharge mode: 12 or 24VExpected Lifespan >10 years * Cycle Life 500,000 charging/discharging cycles*
* To achieve > 10 years lifespan under 24/7 at 65°C operation, please charge PB-9250J-SA to 6525J energy
level using the 4.8x SuperCAP Lifetime Extension setting (please refer to the user manual for details). Once the
rated lifetime or cycle life has been reached, the capacity of supercapacitor may decrease up to 30% and ESR
may increase up to 100% from initial values.
Description
PB-9250J-SA can work with either standard box-PC or in-vehicle controller to provide a stable power supply and execute user-configurable poweron/ power-off delay according to IGN signal input. Featuring various modes, automatic shutdown control and up to 180W output power, Neousys PB series can work with most off-the-shelf box-PCs. And with properties such as maintenance-free energy storage and uninterruptible power supply, the PB series can prevent the connected back-end system from data loss during a power outage in harsh industrial environments!
