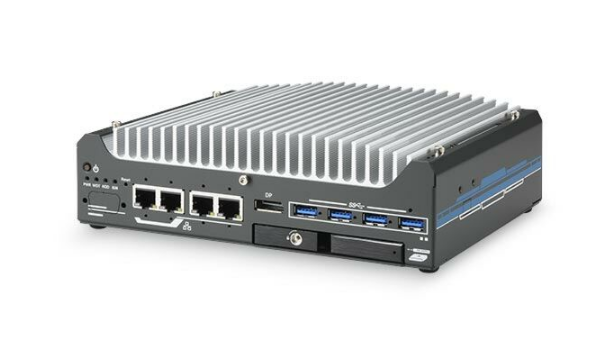

Nuvo-9531: Intel 14th/13th/12th -Gen Core i9/i7/i5/i3 Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2 and 1x Hot Swappable HDD Tray
004976-HW-Neousys-076
Overview
Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th-Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.
| Product Available On | Dec 28, 2022 |
|---|---|
| Manufacturer | Neousys |
| Short Description | Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th-Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications. |
| Processor | Supporting Intel 14th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) Supporting Intel 13th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) Supporting Intel 12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| Chipset | Intel® H610E platform controller hub |
| Video Port | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| Mini PCI-E | 2x full-size mini PCI Express sockets with internal SIM sockets |
| SATA HDD | 1x hot-swappable 2.5" HDD/ SSD tray |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Dimension | 212mm (W) x 165 mm (D) x 63 mm (H) |
| Weight | 2.5 kg |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Operating Temperature | With 35W CPU -25°C ~ 60°C * With 65W CPU (installation of the optional fan kit is recommended) -25°C ~ 60°C */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Family | Intel Core |
| Video Output | Display Port, VGA |
| Serial Ports | 3-4 |
| USB 2.0 | 1-2 |
| USB 3.2 | 1 - 4 |
Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th-Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.
