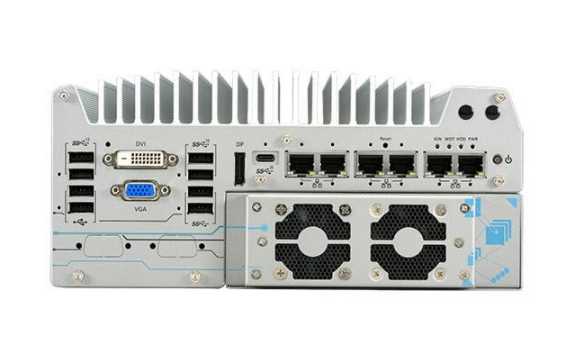

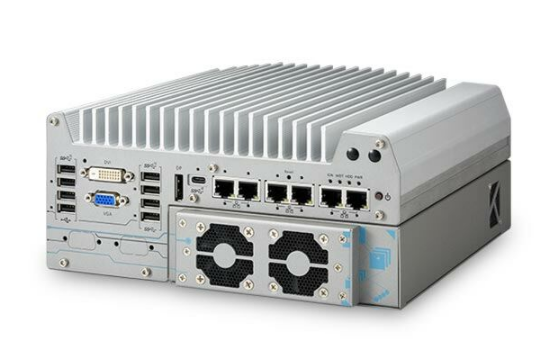

Nuvo-9166GC: Ruggedized Edge AI Inference Computer Supporting NVIDIA L4 GPU and Intel 12th/13th-Gen Core Processor with Dual PCIe Slots
004963-HW-Neousys-063
Overview
Nuvo-9166GC is a rugged, wide-temperature, Edge AI Inference Computer that delivers excellent CPU and GPU performance by leveraging Intel 12th/13th-Gen platform and NVIDIA L4. Thanks to its high-performance density and flexible camera expansion, Nuvo-9166GC is ideal for multi-camera applications requiring real time responses, e.g., AI inspection, robotic guidance, and autonomous machines.
| Product Available On | Jul 3, 2023 |
|---|---|
| Manufacturer | Neousys |
| Short Description | Nuvo-9166GC is a rugged, wide-temperature, Edge AI Inference Computer that delivers excellent CPU and GPU performance by leveraging Intel 12th/13th-Gen platform and NVIDIA L4. Thanks to its high-performance density and flexible camera expansion, Nuvo-9166GC is ideal for multi-camera applications requiring real time responses, e.g., AI inspection, robotic guidance, and autonomous machines. |
| Processor | Supporting Intel 13th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) |
| Graphics | Integrated Intel UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel Q670E Platform Controller Hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 2x PCIe x16 slot@Gen3, 8-lanes PCIe signal in Cassette for installing NVIDIA L4 GPU and one additional PCIe card |
| M.2 | 1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module |
| Mini PCI-E | 1x full-size mini PCI Express socket |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | 4.0kg |
| Mounting | Wall-mount (standard) or damping bracket (optional) |
| Operating Temperature | With 35W CPU and 130W GPU -25°C to 60°C With 65W CPU and 130W GPU -25°C to 60°C (configured as 35W TDP) -25°C to 50°C (configured as 65W TDP) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 (with optional damping bracket) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I (with optional damping bracket) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Cores | 12 |
| Base CPU Speed | 3.1 to 3.5 GHz |
| Video Output | Display Port, DVI-D, VGA |
| PoE Ports | 4 |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 2.0 | 1-2 |
| USB 3.2 | 5 - 8 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 4800 MHz |
| Form Factor | Shoebox |
| Native Storage Type | M.2 NVMe SSD |
| On/Ignition | Remote On/Off |
Nuvo-9166GC is a rugged, wide-temperature, Edge AI Inference Computer that delivers excellent CPU and GPU performance by leveraging Intel 12th/13th-Gen platform and NVIDIA L4. Thanks to its high-performance density and flexible camera expansion, Nuvo-9166GC is ideal for multi-camera applications requiring real time responses, e.g., AI inspection, robotic guidance, and autonomous machines.
Supporting an Intel Core CPU up to 24 cores/ 32 threads, Nuvo-9166GC provides up to nearly twice the performance when compared to 11th/ 10th Gen platforms. The system also supports NVIDIA L4, a data center grade GPU powered by NVIDIA Ada Lovelace architecture for energy-efficient AI acceleration applications, it offers up to 30.3 TFLOPS in FP32 or 485 TOPS in INT8 to set new benchmarks for industrial edge AI computing.
