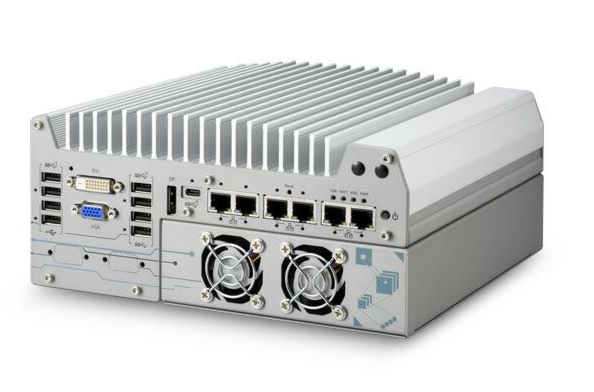

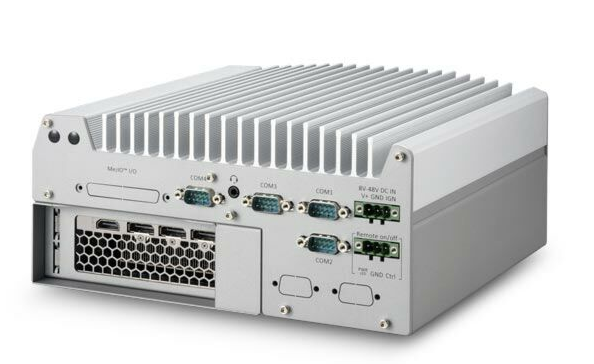

Nuvo-9160GC: Ruggedized AI Inference Platform supporting 130W NVIDIA RTX GPU and Intel 12/13th-Gen Core Processor
TF:
004969-HW-Neousys-069
Overview
Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel's 12/13th-Gen platform and an NVIDIA RTX GPU card up to 130W.
| Manufacturer | Neousys |
|---|---|
| Short Description | Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel's 12/13th-Gen platform and an NVIDIA RTX GPU card up to 130W. The system’s standard and optional GPU brackets can accommodate selected GPU cards including RTX 3050, RTX 4060, NVIDIA RTX A2000, and RTX 4000 SFF Ada. The GPU bracket is designed to secure the GPU card to provide excellent shock and vibration resistance in volatile conditions. |
| Processor | Supporting Intel 13th/12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) |
| Graphics | Integrated Intel UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel Q670E Platform Controller Hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA graphics card up to 130W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation) |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD 1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module |
| Mini PCI-E | 1x full-size mini PCI Express socket |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | 3.89 kg |
| Mounting | Wall-mount (standard) or damping bracket (optional) |
| Operating Temperature | With 35W CPU and 130W GPU -25°C to 60°C** With 65W CPU and 130W GPU -25°C to 60°C**/*** (configured as 35W TDP) -25°C to 50°C**/*** (configured as 65W TDP) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 (with optional damping bracket) (pending) |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II (with optional damping bracket) (pending) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 (pending) |
| CPU Cores | 12 |
| Base CPU Speed | 3.1 to 3.5 GHz |
| Video Output | Display Port |
| PoE Ports | 4 |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 2.0 | 1-2 |
| USB 3.2 | 5 - 8 |
| Max Memory | 64 GB |
| Effective Memory Speed | 4800 MHz |
| Form Factor | Fanless |
| Native Storage Type | M.2 NVMe SSD |
| On/Ignition | Remote On/Off |
The system’s standard and optional GPU brackets can accommodate selected GPU cards including RTX 3050, RTX 4060, NVIDIA RTX A2000, and RTX 4000 SFF Ada. The GPU bracket is designed to secure the GPU card to provide excellent shock and vibration resistance in volatile conditions.
