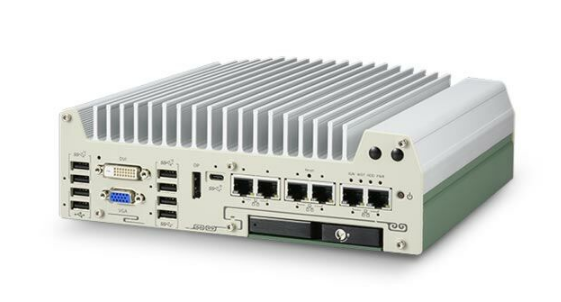

Nuvo 9000LP: Intel 14th/13th/12th-Gen Core Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, Patented Cassette, and MezIO Interface
004975-HW-Neousys-075
Overview
Nuvo-9000 series is Neousys’ new rugged embedded computer based on Intel's 14th/13th/12th-Gen platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processor comes with up to 24 cores and 32 threads and presents an incredible boost of computational performance.
| Product Available On | Jul 14, 2022 |
|---|---|
| Manufacturer | Neousys |
| Short Description | Nuvo-9000 series is Neousys’ new rugged embedded computer based on Intel's 14th/13th/12th-Gen platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processor comes with up to 24 cores and 32 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall performance improvement of up to 2x compared to previous 10th or 11th-Gen platforms. |
| Processor | Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) Intel® Core™ i9-12900E/ i9-12900TE Intel® Core™ i7-12700E/ i7-12700TE Intel® Core™ i5-12500E/ i5-12500TE Intel® Core™ i3-12100E/ i3-12100TE Intel® Pentium® G7400E/ G7400TE Intel® Celeron® G6900E/ G6900TE |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel® Q670E platform controller hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 (2.5GbE) 100 W total power budget |
| Video Port | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 1x PCIe x16 slot@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/ 9006DE) 1x PCI slot in Cassette (Nuvo-9002P/ 9006P) |
| M.2 | 1x M.2 2242/3052 B key socket with SIM slot |
| Mini PCI-E | 1x full-size mini PCI Express socket |
| SATA HDD | 2x internal SATA port for 2.5” HDD/ SSD installation, |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output (Ctrl_In/ GND/ LED_Out) |
| Dimension | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series) |
| Weight | 4.4 kg (Nuvo-9000E/ P series) TBD (Nuvo-9000DE and Nuvo-9000LP series) |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Operating Temperature | -25°C ~ 70°C * with 65W CPU - 25°C ~ 70°C */** (configured as 35W TDP) - 25°C ~ 50°C */** (configured as 65W TDP) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Family | Intel Core, Intel Pentium |
| Video Output | Display Port, DVI-D, VGA |
| Serial Ports | 1-2, 3-4 |
| USB 2.0 | 1-2 |
| Max Memory | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall performance improvement of up to 2x compared to previous 10th or 11th-Gen platforms.
