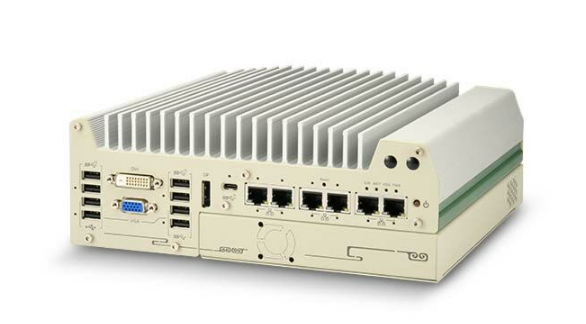

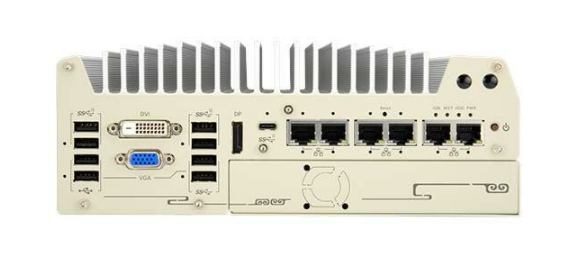

Nuvo-9000E/P/DE Intel 12/13th-Gen Core Rugged Embedded Computer
-
NG # 004974-HW-Neousys-074
Manufactured by:
Intel® 12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, Patented Cassette & MezIO™ Interface
Specification
Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) Intel® Core™ i9-12900E/ i9-12900TE Intel® Core™ i7-12700E/ i7-12700TE Intel® Core™ i5-12500E/ i5-12500TE Intel® Core™ i3-12100E/ i3-12100TE Intel® Pentium® G7400E/ G7400TE Intel® Celeron® G6900E/ G6900TE 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series) 4.4 kg (Nuvo-9000E/ P series) TBD (Nuvo-9000DE and Nuvo-9000LP series) -25°C ~ 70°C * with 65W CPU - 25°C ~ 70°C */** (configured as 35W TDP) - 25°C ~ 50°C */** (configured as 65W TDP)Product Available On Jul 13, 2022 Manufacturer Neousys Short Description Intel® 12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, Patented Cassette & MezIO™ Interface Processor Graphics Integrated Intel® UHD Graphics 770 (32EU) Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) Chipset Intel® Q670E platform controller hub AMT Supports Intel vPro/ AMT 16.0 PoE Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 (2.5GbE) 100 W total power budget Video Port 1x VGA, supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolutionAudio 1x 3.5 mm jack for mic-in and speaker-out PCI Express 1x PCIe x16 slot@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E)
2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/ 9006DE)
1x PCI slot in Cassette (Nuvo-9002P/ 9006P)M.2 1x M.2 2242/3052 B key socket with SIM slot Mini PCI-E 1x full-size mini PCI Express socket SATA HDD 2x internal SATA port for 2.5” HDD/ SSD installation, DC Input 1x 3-pin pluggable terminal block for 8 to 48V DC input Remote Ctrl. & Status Output 1x 3-pin pluggable terminal block for remote control and PWR LED output (Ctrl_In/ GND/ LED_Out) Dimension Weight Mounting Wall-mount (standard) or DIN-rail mount (optional) Operating Temperature Storage Temperature -40°C ~ 85°C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II EMC CE/FCC Class A, according to EN 55032 & EN 55035 CPU Family Intel Core, Intel Pentium Video Output Display Port, DVI-D, VGA Serial Ports 1-2, 3-4 USB 2.0 1-2 Max Memory 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Description
Nuvo-9000 series is Neousys’ new rugged embedded computer based on Intel 12/13th-Gen platforms. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.
Nuvo-9000 series inherits Neousys’ patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot. For users who need more flexible storage, Nuvo-9000LP has a 2.5” HDD tray instead of an expansion Cassette to support a hot-swappable 2.5” HDD/SSD.
