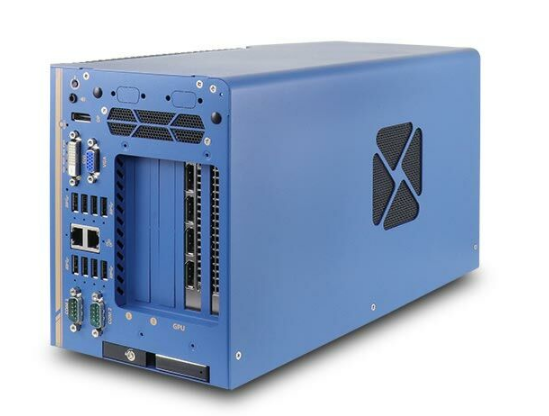

Nuvo-8108GC-QD: Industrial-grade Edge AI Platform Supporting NVIDIA RTX A6000/A4500 GPUs
-
NG # 004978-HW-Neousys-078
Manufactured by:
Nuvo-8108GC-QD, the latest member of the well-received Nuvo-8108GC series, is a rugged edge AI platform specially designed for NVIDIA® RTX A6000 and RTX A4500 Ampere GPU cards. The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.
Specification
Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T) i7-9700E, i7-9700TE, i7-8700, i7-8700T i5-9500E, i5-9500TE, i5-8500, i5-8500T Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port, or integrated Intel® UHD graphics 630i3-9100E, i3-9100TE, i3-8100, i3-8100T 1x hot-swappable HDD tray for 2.5” HDD/ SSD installation 1x Internal SATA port for 2.5” HDD/ SSD installation, with 35W CPU and one NVIDIA® RTX A6000/ A4500 GPU - 25°C ~ 60°C *** with >= 65W CPU and one NVIDIA® RTX A6000/ A4500 GPU - 25°C ~ 60°C **/ *** (configured as 35W TDP mode) - 25°C ~ 50°C **/ *** (configured as 65W TDP mode)Manufacturer Neousys Processor Graphics Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port, or integrated Intel® UHD graphics 630 Memory Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots) Chipset Intel® C246 Platform Controller Hub AMT Supports AMT 12.0 Video Port 1x VGA , supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolutionAudio 1x 3.5 mm jack for mic-in and speaker-out PCI Express 2x PCIe x16 slot@Gen3, 8-lanes 2x PCIe x8 slots@Gen3, 4-lanes M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation Mini PCI-E 2x full-size mini PCI Express socket SATA mSATA 2x full-size mSATA port (mux with mini-PCIe) DC Input 2x 4-pin pluggable terminal block for 8~48V DC input with ignition control Dimension 170.2 mm (W) x 360 mm (D) x 201.8 mm (H) Weight 5.8 kg Mounting Neousys’ patented damping brackets Operating Temperature Storage Temperature -40°C ~ 85°C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II EMC CE/ FCC Class A, according to EN 55024 & EN 55032 CPU Family Intel Xeon Video Output Display Port, DVI-D, VGA Serial Ports 1-2 USB 2.0 1-2 USB 3.1 1-4, 5-8 Max Memory 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB Native Storage Type mSATA Full, M.2 SATA S80
Description
Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, it has a strong foundation for building a powerful AI edge computing platform. It has a refined thermal dissipation design to optimize GPU performance in high-temperature environments. Additionally, Nuvo-8108GC-QD comes with a dedicated mounting bracket for RTX A6000/ A4500 to keep the GPU card firmly secured in the PCIe slot. Along with Neousys’ patented damping brackets*, it ensures rock-solid operation in intensive shock and vibration conditions.
