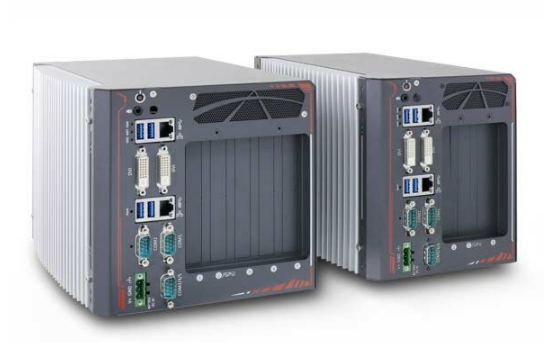

Nuvo-8000 Series Intel 9th/8th-Gen Core Box-PC with up to 5 PCIe/ PCI Slots
-
NG # 004977-HW-Neousys-077
Manufactured by:
Nuvo-8000 series systems are cost-effective box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.
Specification
Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-9700TE/ i7-8700*/ i7-8700T - Intel® Core™ i5-9500TE/ i5-8500*/ i5-8500T - Intel® Core™ i3-9100TE/ i3-8100*/ i3-8100T - Intel® Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP) - Intel® Celeron® G4900T (2M Cache, 2.9GhHz, 35W TDP) Nuvo-8003 154 mm (W) x 235mm (D) x 174 mm (H) Nuvo-8023, Nuvo-8032, Nuvo-8041 185 mm (W) x 235 mm (D) x 174 mm (H)Manufacturer Neousys Processor Graphics Integrated Intel® UHD Graphics 630, or independent 125W GPU via x16 PEG port Memory Up to 32 GB DDR4 2666 SDRAM (one SODIMM slot) Chipset Intel® H310 platform controller hub Video Port 2x DVI-D connectors, each supporting 1920x1200 resolution Audio 1x 3.5 mm jack for mic-in and speaker-out SATA HDD 2x internal SATA ports for 2.5” HDD/ SSD installation mSATA 1x full-size mSATA port DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input Dimension Weight 3 Kg & 3.6 Kg Mounting Wall-mount (standard) DIN-Rail mounting (optional) Rack-mount (optional) Operating Temperature -25 C ~ 60 C Storage Temperature -40 C ~ 85 C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II EMC CE/FCC Class A, according to EN55032 & EN55035 Base CPU Speed Under 2.0 Ghz, 2.1 to 3.0 GHz, 3.1 to 3.5 GHz Video Output DVI-D Serial Ports 1-2, 3-4 USB 2.0 1-2, 3-4 USB 3.1 1-4 Max Memory 2 GB, 4 GB, 8 GB, 16 GB, 32 GB
Description
There are four models in the Nuvo-8000 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, Nuvo-8000 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.
