Nuvo-2610VTC: Intel Elkhart Lake Atom x6425E In-Vehicle Computer with 4x M12 PoE+ ports and 15mm 2.5” HDD/SSD support
-
NG # 004968-HW-Neousys-068
Manufactured by:

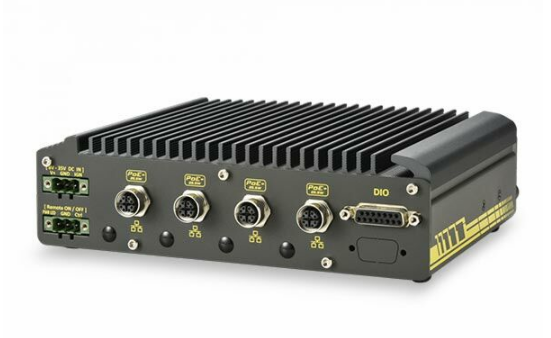

The Nuvo-2610VTC series is a rugged Intel Atom-based in-vehicle computer that incorporates four M12 Gigabit PoE+ connectors and one front accessible 2.5" HDD tray, supporting up to 15mm height HDD/SSD. It is designed to fulfill multi-purpose applications such as on-road, off-highway, or railway applications from mobile gateways, data loggers, to network video recorders (NVR).
Specification
Manufacturer Neousys Short Description The Nuvo-2610VTC series is a rugged Intel Atom-based in-vehicle computer that incorporates four M12 Gigabit PoE+ connectors and one front accessible 2.5" HDD tray, supporting up to 15mm height HDD/SSD. It is designed to fulfill multi-purpose applications such as on-road, off-highway, or railway applications from mobile gateways, data loggers, to network video recorders (NVR). Processor Intel Elkhart Lake Atom x6425E quad-core 2.0GHz/3.0GHz 12W processor Graphics Integrated Intel UHD Graphics Memory Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket PoE 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 via M12 x-coded connectors Video Port VGA and DVI dual display outputs via DVI-I connector Audio 1x 3.5 mm jack for mic-in and speaker-out DIO 4-CH isolated DI and 4-CH isolated DO PCI Express 1x PCIe x4 slot @Gen3, 2-lane PCIe signal in Cassette (Nuvo-2612VTC only) M.2 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation SATA HDD 1x front-accessible HDD tray for 2.5" HDD/ SSD installation (up to 15mm height) Remote Ctrl. & Status Output 1x 3-pin pluggable terminal block for remote control and PWR LED output Dimension 205 mm (W) x 156 mm (D) x 58 mm (H) (Nuvo-2610VTC)
205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2612VTC)Weight 1.9 kg (Nuvo-2610VTC)
2.3 kg (Nuvo-2612VTC)Mounting Wall-mount (optional) Operating Temperature -40°C ~ 70°C*. EN50155 Class OT4 Storage Temperature -40°C ~85°C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G, Method 514.7, Category 4 (pending)
IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending)Shock Operating, MIL-STD-810G, Method 516.7, Procedure I (pending)
IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending)EMC EN 50155:2017, Clause 13.4.8 (pending)
CE/FCC Class A, according to EN 55032 & EN 55035 (pending)CPU Cores 4 CPU Family Intel Atom Base CPU Speed 2.1 to 3.0 GHz Video Output DVI-I, VGA PoE Ports 4 Serial Ports 3-4 USB 2.0 1-2 USB 3.1 1-4 Max Memory 32 GB Operating System Windows 10, Linux Effective Memory Speed 3200 MHz Form Factor Fanless Native Storage Type 2.5" SSD, M.2 SATA S80 On/Ignition Remote On/Off, Built In Ignition Control
Description
The Nuvo-2610VTC series is a rugged Intel Atom-based in-vehicle computer that incorporates four M12 Gigabit PoE+ connectors and one frontaccessible 2.5" HDD tray, supporting up to 15mm height HDD/SSD. It is designed to fulfill multi-purpose applications such as on-road, off-highway, or railway applications from mobile gateways, data loggers, to network video recorders (NVR).
Powered by Intel Elkhart Lake Atom x6425E quad-core CPU, the Nuvo-2610VTC series delivers 1.8x the CPU performance when compared with the previous generation. To provide robust Ethernet connectivity, the Nuvo-2610VTC series offers four Gigabit PoE+ ports via M12 x-coded connectors and two USB 3.1 ports with the screw-lock mechanism. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2610VTC also has one front-accessible 2.5" HDD tray accommodating a 2.5" SATA HDD/SSD with up to 15mm height and 5TB capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules plus one M.2 3042/3052 B Key socket for 4G/5G mobile broadband module.
