Nuvo-2600 Intel Elkhart Lake Atom x6425E Fanless Computer with PoE+ and Ignition Options
-
NG # 004954-HW-Neousys-054
Manufactured by:

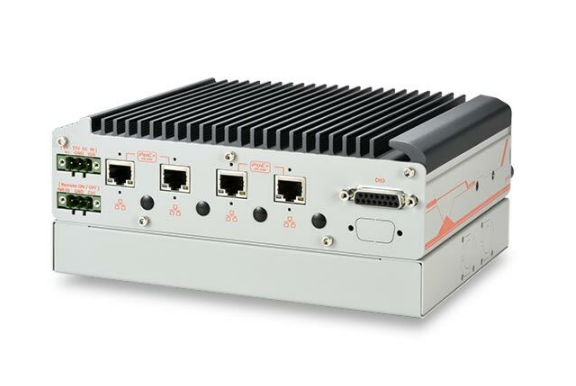

The Nuvo-2600 series is an Intel Elkhart Lake Atom fanless computer with flexible expansions to fulfill versatile factory automation and machine vision applications that require a compact footprint, Gigabit PoE+ capability, and front-accessible data storage with CPU performance at 12W of low power consumption.
Specification
Manufacturer Neousys Short Description Intel Elkhart Lake Atom x6425E Fanless Computer with PoE+ and Ignition Options Processor Intel Elkhart Lake Atom x6425E quad-core 2.0GHz/3.0GHz 12W processor Graphics Integrated Intel UHD Graphics Memory Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket PoE In compliant with IEEE 802.3at PoE+ PSE, maximal 25.5W output on single PoE+ port. Compatible with 802.3at (PoE+) and 802.3af (PoE) PD Video Port VGA and DVI dual display outputs via DVI-I connector Audio 1x 3.5 mm jack for mic-in and speaker-out DIO 4-CH isolated DI and 4-CH isolated DO PCI Express 1x PCIe x4 slot @ 2-lane PCIe 3.0 signal in Cassette (Nuvo-2600E only) M.2 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation Mini PCI-E 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal
1x full-size mini PCI Express socket with USB 2.0 signalSATA HDD 1x front-accessible HDD tray for 2.5" HDD/ SSD installation (up to 15mm height) mSATA 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation Fan Fanless Remote Ctrl. & Status Output 1x 3-pin pluggable terminal block for remote control and PWR LED output Dimension 205 mm (W) x 155 mm (D) x 86 mm (H) Weight 2.3 kg (Nuvo-2600E)
2.5 kg (Nuvo-2600J)Mounting Wall-mount bracket (optional) Operating Temperature -25°C ~ 70°C*
*A wide-temperature HDD drive or solid-state disk (SSD) is required for sub-zero operating temperature.Storage Temperature -40°C ~85°C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G, Method 514.7, Category 4 Shock Operating, MIL-STD-810G, Method 516.7, Procedure I EMC CE/FCC Class A, according to EN 55032 & EN 55035 Ultracapacitor Configuration 2500 watt-second (Nuvo-2600J only)
Description

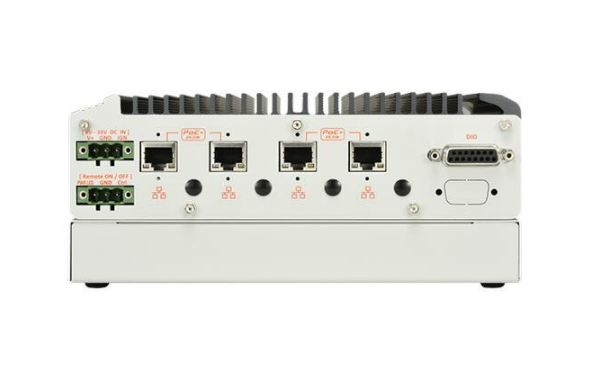

Powered by Intel Elkhart Lake Atom x6425E quad-core CPU, the Nuvo-2600 series delivers 320% CPU performance improvement compared with our previous Nuvo-2500E series. The Nuvo-2600 series has four Gigabit PoE+ and one USB 3.1 ports with screw-lock mechanisms to secure camera connections. In addition to its internal M.2 2280 SATA SSD for system storage, Nuvo-2600 has one front-accessible 2.5" HDD tray accommodating a 7-15mm 2.5" SSD/HDD up to 5TB in storage capacity. It also has one isolated RS-485 port and isolated DIO to provide robust connections with industrial devices. For internal expansion, the Nuvo-2600 series provides two mini-PCIe sockets and one M.2 3042/3052 B Key socket to support 4G/5G mobile broadband.
To meet diverse deployment requirements, the Nuvo-2600 series comes in two variants. The Nuvo-2600E has a PCIe Cassette for an additional PCIe card, e.g., USB or GbE frame grabber, isolated DIO, or industrial communication card. While Nuvo-2600J has an integrated SuperCAP UPS that can withstand power interruption or voltage fluctuation in industrial environments. Featuring Intel Elkhart Lake Atom quad-core CPU, wide temperature operation, industrial I/O interfaces, and expansion Cassette module, Nuvo-2600 series is the perfect, multi-purpose fanless Industrial PC for factory automation and machine vision applications.
