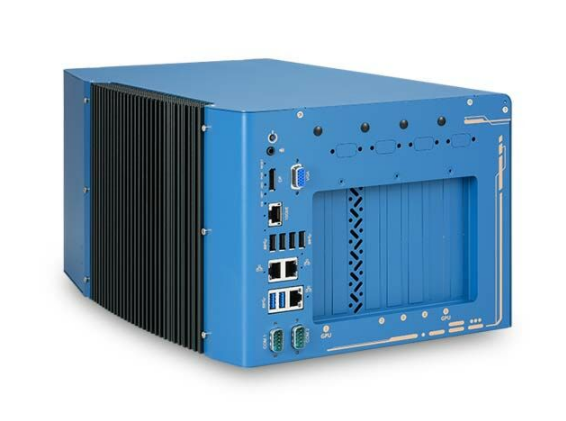

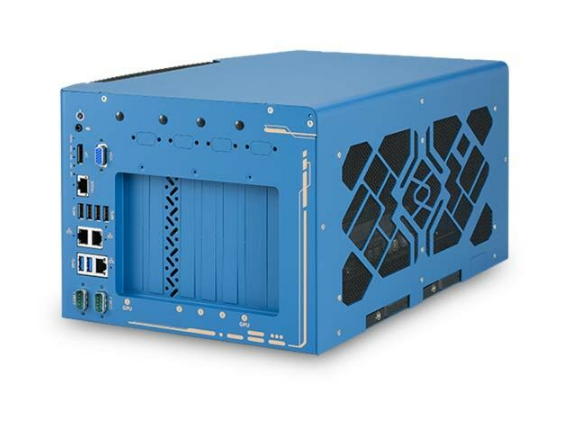

Nuvo-10208GC: Industrial-Grade Edge AI Platform Supporting Dual NVIDIA RTX Series 350W GPU Cards, Intel 14th/13th/12th-Gen Core Processors, 3x Additional PCIe Slots, 10G/2.5G/1G Ethernet
TF:
004965-HW-Neousys-065
Overview
The Nuvo-10208GC supercharges your autonomous driving, surveillance applications, and vision inspection applications. This powerhouse of performance supports the latest Intel 14th/13th/12th-Gen CPUs and two NVIDIA 350W GPUs. To secure the bigger and heavier NVIDIA RTX 40 Series GPUs, Nuvo-10208GC features patent-pending GPU locking and damping brackets that guarantee rock-solid reliability for your on-road and off-road in-vehicle applications.
| Manufacturer | Neousys |
|---|---|
| Short Description | Nuvo-10208GC is an Intel 14th/13th/12th-Gen rugged edge AI platform supporting dual RTX 40 Series/RTX A6000/A4500 GPU cards to offer GPU performances up to 97 TFLOPS in FP32 for autonomous driving, vision inspection and surveillance applications. |
| Processor | Intel 14th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) Intel 13th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) Intel 12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP) |
| Graphics | Integrated Intel UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory | Up to 64GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel R680E Platform Controller Hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| Ethernet Standard | Intel I219-LM I219-LM |
| Video Port | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 2x PCIe x16 slot@Gen4, 8-lanes 3x PCIe x8 slot@Gen3, 4-lanes |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD Optional 1x M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD |
| Mini PCI-E | 2x full-size mini PCI Express sockets with internal SIM sockets |
| SATA HDD | 2x hot-swappable HDD trays for 2.5" HDD/ SSD installation (support RAID 0/ 1) |
| DC Input | 3-pin+ 4-pin pluggable terminal block for 8~48V DC input with ignition control |
| Dimension | 268 mm (W) x 400 mm (D) x 196 mm (H) |
| Weight | 6.5 Kg |
| Mounting | Wall-mount with damping brackets |
| Operating Temperature | With 35W CPU and dual NVIDIA 350W GPU: - 25°C to 60°C * With 65W CPU and dual NVIDIA 350W GPU: - 25°C ~ 60°C */** (with optional fan kit) With 65W CPU and dual NVIDIA 350W GPU: - 25°C ~ 50°C */** (without optional fan kit) |
| Storage Temperature | 40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/ FCC Class A, according to EN 55032 & EN 55035 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz, 3.1 to 3.5 GHz |
| Video Output | Display Port, VGA |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.2 | 5 - 8 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 4800 MHz |
| Form Factor | Shoebox |
| Native Storage Type | 2.5" SSD, M.2 NVMe SSD, Hot Swap Capable |
Nuvo-10208GC is an Intel 14th/13th/12th-Gen rugged edge AI platform supporting dual RTX 40 Series/RTX A6000/A4500 GPU cards to offer GPU performances up to 97 TFLOPS in FP32 for autonomous driving, vision inspection and surveillance applications.
