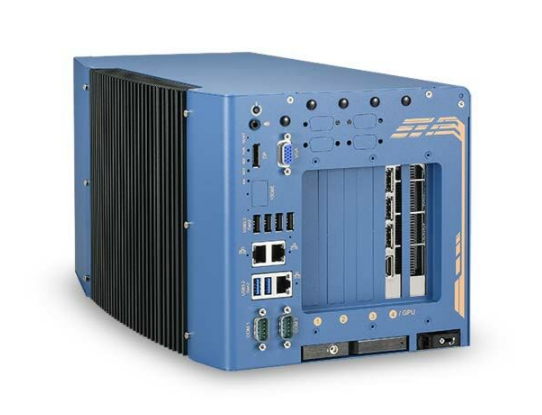

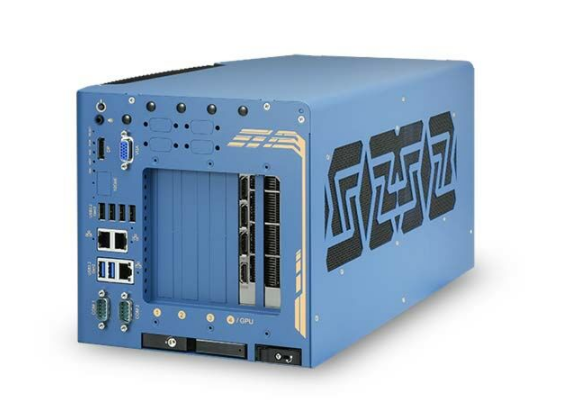

Nuvo-10108GC: Industrial Edge AI Computer Supporting a 350W NVIDIA RTX GPU and Intel 12th/13th-Gen Core Processor with Three Additional PCIe Slots
004964-HW-Neousys-064
Overview
Nuvo-10108GC is Neousys' response to ruggedized Edge AI computer with extreme CPU and GPU performance for autonomous driving and AI-powered factory automation. It leverages an Intel 12th/13th-Gen CPU and an NVIDIA RTX 40 series or the latest RTX 6000 Ada GPU that offers single-precision GPU performances up to 48 TFLOPS or 91 TFLOPS, respectively.
| Manufacturer | Neousys |
|---|---|
| Short Description | Industrial Edge AI Computer Supporting a 350W NVIDIA RTX GPU and Intel 12th/13th-Gen Core Processor with Three Additional PCIe Slots. |
| Processor | Supporting Intel 12th and 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU)/ 730 (24EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel® R680E Platform Controller Hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| Ethernet Standard | I226-IT I219-LM |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 1x PCIe x16 slot @Gen4, 16-lanes with 6.5 mm slot width. The standard GPU locking bracket is designed for NVIDIA RTX A4000, A5000, A6000, 6000 Ada, and selected RTX 40 Series GPU cards. 3x PCIe x8 slots @Gen3, 4-lanes |
| M.2 | 1x M.2 2242/3052 B key socket with internal SIM sockets |
| Mini PCI-E | 2x full-size mini PCI Express sockets with internal SIM sockets |
| SATA HDD | 1x front-accessible, hot-swappable HDD trays for 2.5" HDD/ SSD installation |
| DC Input | 3-pin + 4-pin pluggable terminal block for 8V to 48V DC input with ignition control |
| Dimension | 214 mm (W) x 400 mm (D) x 196 mm (H) (without damping bracket) |
| Weight | TBD |
| Mounting | Wall-mount with damping brackets |
| Operating Temperature | With 35W CPU and NVIDIA 350W GPU: -25°C to 60°C With 65W CPU and NVIDIA 350W GPU: -25°C to 60°C (with optional fan kit), -25°C to 50°C (without optional fan kit) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 (with damping bracket) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I (with damping bracket) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Family | Intel Core, Jetson AGX Orin |
| Base CPU Speed | 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz |
| Video Output | Display Port, VGA |
| PoE Ports | 2 |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 5-6 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 4800 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, M.2 NVMe SSD |
Powered by Intel 12th/13th-Gen CPU with up to 24 cores and 32 threads, Nuvo-10108GC offers up to twice the performance compared to previous Intel 10th or 11th-Gen platforms. Plus, Nuvo-10108GC supports ECC memory to deliver mission-critical computation, e.g., automated driving in urban traffic. It inherits a proven thermal dissipation design for the CPU and GPU to guarantee -25°C to 60°C wide-temperature operation. Featuring an innovative GPU locking bracket to fasten the GPU to the chassis and Neousys' patented damping bracket to absorb high-frequency vibration allowing Nuvo-10108GC to thrive in continuous shaking and juddering conditions in on/ off highway applications.
