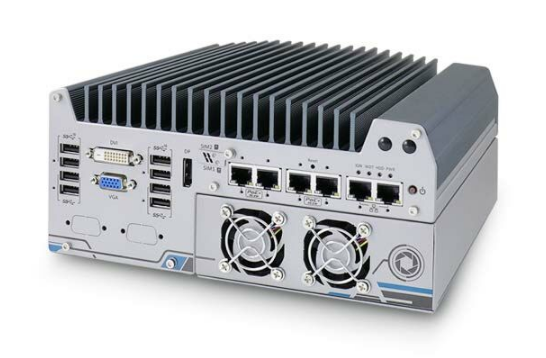

Nuvis-7306RT Neousys 9th / 8th Gen Intel Vision Controller with Vision-Specific I/O and GPU Computing
-
NG # 004981-HW-Neousys-081
Manufactured by:
Nuvis-7306RT series is an all-in-one powerful vision controller incorporating every function needed for machine vision applications. Powered by Intel® 9th/ 8th-Gen Core™ i7/i5, Nuvis-7306RT brings tremendous computing power for image processing. Nuvis-7306RT integrates constant-current lighting controller, isolated 12V camera trigger output, encoder input for position information and DIO to connect sensors/ actuators.
Specification
Manufacturer Neousys Processor 9th / 8th Gen Intel Core GPU Graphics Integrated Intel UHD Graphics 630 Memory Up to 64GB DDR4-2666/2400 SDRAM by two SODIMM sockets Chipset Intel® Q370 Platform Controller Hub AMT Supports AMT 12.0 PoE Option : IEEE 802.3at PoE+ PSE on GigE Port 3 ~ Port 6 Ethernet Standard I219 I210 Video Port 1x VGA, 1X DVD-D, 1x DisplayPort Audio 1x Mic-in and 1x Speaker-out DIO 4-CH isolated high speed digital output 4-CH isolated high current digital output 8-CH isolated high speed digital input PCI Express 2x PCIe x16 slots M.2 1x M.2 Socket for NVMe storage 1x M.2 socket with dual SIM for Cellular card (contact CoastIPC for limitations) Mini PCI-E 1x mPCIe (mux with mSATA) SATA HDD 2x SATA ports for 2.5" SDD mSATA 1x full-size mSATA port (mux with mPCIe) 2.5" Drive 2x internal SATA DC Input 1x 3-pin pluggable terminal block for 8~35VDC input Power Adapter 280W 480W recommended Power Input Voltage 8~35VDC Power Type DC Fan Cassette only Remote Ctrl. & Status Output 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output Dimension 240 mm (W) x 225 mm (D) x 111 mm (H) Weight 4.5 kg estimated no packaging, no GPU Mounting Wall-mount Operating Temperature varies - see manual Storage Temperature -40-85C Humidity 10%~90% , non-condensing Vibration Operating, MIL-STD-810G Method 514.6, Category 4 Shock Operating, MIL-STD-810G Method 516.6, Procedure 1, Table 516.6-II EMC CE/FCC Class A, according to EN 55022, EN55032 & EN 55024 CPU Cores 4, 6 CPU Family Intel Core Base CPU Speed 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz Video Output Display Port, DVI-D, VGA PoE Ports 4 LAN Ports 5-8 Serial Ports 3-4 USB 2.0 1-2 USB 3.1 5-8 Max Memory 64 GB Operating System Windows 10, Linux Effective Memory Speed 2400 MHz, 2666 MHz Form Factor Fanless Native Storage Type 2.5" SSD, mSATA Full, M.2 NVMe SSD On/Ignition Remote On/Off
Description
Thanks to Neousys’ patented MCU-based architecture and DTIO/ NuMCU firmware, Nuvis-7306RT is able to overcome latencies between sensor input and trigger output. It offers microsecond-scale real-time I/O control that guarantees in-time or in-position image capture. For deep learning vision applications, Nuvis-7306RT can accommodate an NVIDIA® 120W TDP GPU to leverage state-of-the-art object detection/classification neural network models. Built-in vision-oriented I/O along with remarkable performance makes Nuvis-7306RT the most exceptional vision controller that fits right into the modern vision industry.
