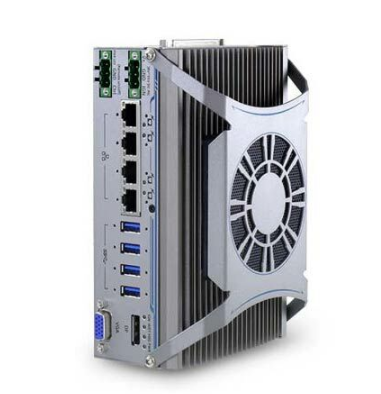

Nuvis-534RT Ultra Compact Vision Controller
-
NG # 004983-HW-Neousys-083
Manufactured by:
Nuvis-534RT is a high-performance, ultra-compact vision controller with integrated camera interfaces, vision-specific I/Os and real-time control for machine vision applications. Powered by AMD Ryzen™ Embedded V1807B 4-core/ 8-thread processor, it provides superb performances equivalent to mainstream desktop CPUs while retaining a compact 8.2 cm x 11.8 cm x 17.6 cm (3.4” x 4.6” x 6.9”) dimensions.
Specification
Product Available On May 15, 2021 Manufacturer Neousys Processor AMD Ryzen V1807B Graphics Vega GPU with 11 compute units Memory Max 16GB DDR4-3200 (1x SODIMM) PoE 4x PoE GbE (4 Total Ethernet Ports) Ethernet Standard i350-AM4 Video Port 1 VGA, 1 DP Audio 1x 3.5mm jack DIO 8-CH isolated high speed in; 4-CH isolated high speed out; 4-CH isolated high current out (500mA) M.2 1x 2280 NVMe storage DC Input 8-35VDC Power Adapter 160W AC/DC Power Input Voltage 8-35VDC Power Type DC Fan external to fanless chassis Dimension 82mm x 118mm x 176 Weight 3.3 lbs unboxed Mounting DIN Rail standard; Wall mount optional Operating Temperature -25-70C Storage Temperature -40-85C Humidity 10-90% non-condensing Vibration MIL-STD 810G Shock MIL-STD 810G EMC CE/FCC Class A CPU Cores 4 CPU Family AMD Base CPU Speed 3.1 to 3.5 GHz Video Output Display Port, VGA PoE Ports 4 LAN Ports 1-4 Serial Ports 3-4 USB 3.1 1-4 Max Memory 16 GB Operating System Windows 10, Linux Effective Memory Speed 3200 MHz Form Factor Fanless Native Storage Type M.2 NVMe SSD On/Ignition Remote On/Off
Description
Nuvis-534RT offers unique vision-oriented I/O configurations, including constant-current lighting controller to directly drive LED lights, isolated 12V trigger output to activate cameras, encoder input to acquire position information and DIO to connect to sensors/ actuators. All of the above visionoriented I/Os can be managed by Neousys’ patented DTIO V2 or NuMCU technology to guarantee real-time trigger/ response in micro-second scale.
The combination of high performance and small footprint gives Nuvis-534RT a distinctive 1-2 punch advantage where the vision system can be easily deployed with USB 3.1 and GigE cameras and without space restrictions.
