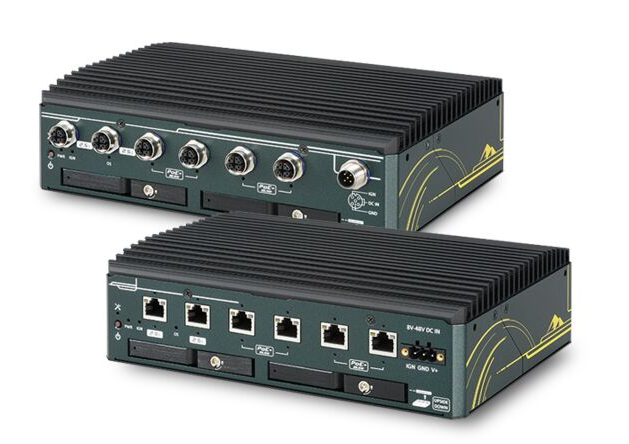

NRU-220S / 222S NVIDIA Jetson AGX Orin AI NVR for Intelligent Video Analytics
004970-HW-Neousys-070
Overview
NRU-220S series is a one-stop AI NVR real-time inference and video transcoder powered by NVIDIA Jetson AGX Orin. Its fanless design and wide temperature operation capability makes it ideal for stationary or mobile deployment applications.
| Manufacturer | Neousys |
|---|---|
| Short Description | NRU-220S series is a one-stop AI NVR real-time inference and video transcoder powered by NVIDIA Jetson AGX Orin. Its fanless design and wide temperature operation capability makes it ideal for stationary or mobile deployment applications. |
| Processor | Supporting NVIDIA Jetson AGX Orin™ System-on-Module (SOM), comprising NVIDIA Ampere GPU and Arm Cortex-A78AE CPU |
| Memory | 32GB/ 64GB LPDDR5 (AGX Orin 32GB/64GB) @ 3200 MHz on SOM |
| PoE | IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6, 100W total power budget |
| Video Port | 1x DisplayPort, supporting 3840x2160 at 60Hz |
| M.2 | 1x M.2 3042/3052 B key (USB 3.1 Gen 1 + USB 2.0) for LTE/5G module with dual micro SIM support |
| Mini PCI-E | 1x full-size mini PCI Express socket (PCIe + USB 2.0) for WiFi 6 or CAN 1x full-size mini PCI Express socket (USB 2.0) for GNSS or 4G LTE |
| SATA HDD | 2x front-accessible 2.5” 7mm SSD |
| DC Input | NRU-220S: 1x 3-pin pluggable terminal block for 8V to 48V DC input and ignition power control (IGN/ GND/ V+) NRU-222S: 1x M12 A-coded 5-pin for 8V to 48V DC input and ignition power control (IGN/ GND/ V+)* * Due to the M12 DC input current limit, the allowable DC input range of the NRU-222S varies based on the system load. System load under 60W: The required DC input range is 8V to 48V System load between 60W to 160W: The required DC input range is 20V to 48V |
| Dimension | 230 mm (W) x 173 mm (D) x 66 mm (H) |
| Weight | 2.6 kg (excluding the damping bracket) |
| Mounting | Wall-mount with the damping bracket |
| Operating Temperature | 25°C ~ 70°C with passive cooling (30W TDP mode on JAO32/ JAO64) ** -40°C ~ 75°C with passive cooling (35W TDP mode on JAOi) ** ** For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required. |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90%, non-condensing |
| Vibration | NRU-220S: Operating, MIL-STD-810H, Method 514.8, Category 4 NRU-222S: IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Shock | NRU-220S: Operating, MIL-STD-810H, Method 516.8, Procedure I NRU-222S: IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| EMC | NRU-220S: CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) NRU-222S: CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) |
| CPU Family | Jetson AGX Orin |
| Video Output | Display Port |
| PoE Ports | 4 |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 2.0 | 3-4 |
| USB 3.1 | 1-4 |
| Max Memory | 32 GB, 64 GB |
| Operating System | NVIDIA JetPack 5.0.2 |
| Effective Memory Speed | 3200 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, On Module |
NRU-220S series is a one-stop AI NVR real-time inference and video transcoder powered by NVIDIA Jetson AGX Orin. Its fanless design and widetemperature operation capability makes it ideal for stationary or mobile deployment applications.
Powered by NVIDIA Jetson AGX Orin™ 32GB/ 64GB system-on-module (SOM), it comprises an Ampere GPU with up to 2048 CUDA cores, 64 Tensor cores, 2x NVDLA 2.0 Engines that offer a total of 275 sparse TOPS (INT8) AI inference and video transcoding capability of up to twenty-two 1080P video streams simultaneously.
NRU-220S offers four 802.3at PoE+ ports sharing 1 Gigabit bandwidth; each port can supply up to 25.5W of power to IP cameras. The additional two 2.5GbE ports is ideal for surveillance applications requiring more IP camera connections, or higher bandwidth connections to the backend. In addition to 64GB eMMC on the Orin module and an M.2 2280 NVMe socket for fast SSD read/write, NRU-220S is equipped with two front-accessible 2.5" SSD trays for storage expansion. It also has two mini-PCIe sockets for CAN/ COM/ WiFi modules and one M.2 B key socket for 4G LTE/5G NR mobile communications.
