Neousys POC-451 Series
-
NG # 004973-HW-Neousys-073
Manufactured by:

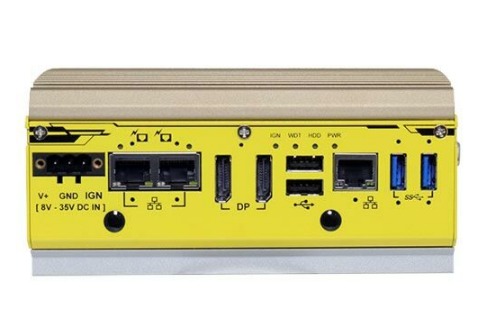

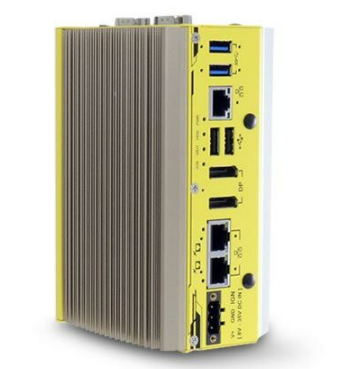

POC-451VTC is an ultra-compact in-vehicle computer with E-Mark certificate for in-vehicle applications, such as mobile gateway, mobile surveillance and passenger information system.
Specification
Manufacturer Neousys Short Description POC-451VTC is an ultra-compact in-vehicle computer with E-Mark certificate for in-vehicle applications, such as mobile gateway, mobile surveillance and passenger information system. Processor Elkhart Lake Atom x64 25E quade-core 2.0 Ghz/3.0 GHz 12W Graphics Intel UHD Memory ddr$-3200 SDRAM by one SODIMM socket up to 32GB PoE ports 2 and 3 PoE+ Ethernet Standard Intel i225 Video Port 2x DisplayPort Audio optional DIO 4x Isolated DI 4x Isolated DO M.2 2x M.2 2230 E Key 1x M.2 2242/3052 B Key with SIM Mini PCI-E 1x full size slot Power Input Voltage 8-35V DC Power Type DC Dimension 153 x 108 x 72mm Weight .96Kg Mounting Vertical wall included DIN Rail Optional Operating Temperature see specification sheet Storage Temperature see specification sheet Humidity see specification sheet Vibration see specification sheet Shock see specification sheet CPU Cores 4 CPU Family Intel Atom Base CPU Speed Under 2.0 Ghz Video Output Display Port PoE Ports 2 LAN Ports 1-4 Serial Ports 3-4 USB 2.0 1-2 USB 3.1 1-4 Max Memory 32 GB Operating System Windows 10, Linux Effective Memory Speed 3200 MHz Form Factor Fanless Native Storage Type M.2 SATA S80
Description
POC-451VTC is an ultra-compact in-vehicle computer with E-Mark certificate for in-vehicle applications, such as mobile gateway, mobile surveillance and passenger information system. It leverages the latest Intel® Elkhart Lake Atom® x6425E CPU, delivering 1.8x and 2x performance improvement for the CPU and GPU respectively, compared to the previous generation.
POC-451VTC provides multiple M.2 and mPCIe slots for installation of 4G/5G, WIFI5/6, CAN bus and edge TPU module for modern in-vehicle applications. It can therefore extend WIFI and broadband wireless communication as well as AI inference functionality inside a compact footprint. More than that, POC-451VTC introduces a dedicated conduction-cooled heat spreader to bring out and dissipate heat generated by M.2/mPCIe modules to maintains optimal system performance at high temperature environment.
