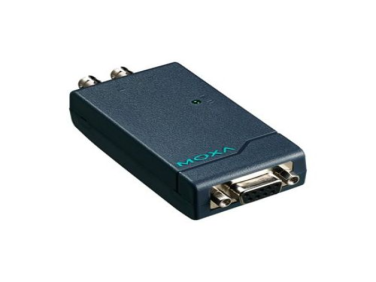

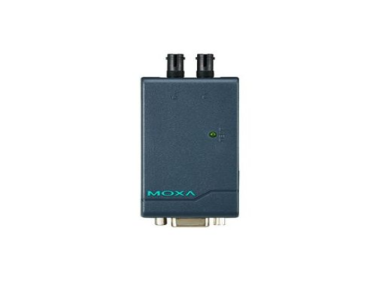

MOXA TCF-90 Series Serial-to-Fiber Optic Converters
2445-HW-MAXO-011
Overview
In today’s industrial landscape, ensuring robust and efficient communication between devices is essential. The MOXA TCF-90 Series Serial-to-Fiber Optic Converters are designed to provide a reliable solution for converting serial signals to fiber optic signals. These converters offer numerous advantages, including enhanced data transmission over long distances, superior noise immunity, and easy integration into various industrial applications.
| Specification | Details |
|---|---|
| Serial Interface | |
| No. of Ports | 2 |
| Serial Standards | RS-232 |
| Flow Control | ADDC (automatic data direction control) for RS-485 |
| Connector | DB9 female |
| Optical Fiber | Optical Fiber |
| Baudrate | 300 bps to 115.2 kbps |
| Serial Signals | RS-232: TxD, RxD, GND |
| Power Parameters | |
| Input Current | 5 to 12 VDC, 20 mA (max.) |
| Input Voltage | 5 to 12 VDC |
| No. of Power Inputs | 1 |
| Overload Current Protection | Supported |
| Source of Input Power | Power input jack |
| Physical Characteristics | |
| Housing | Plastic |
| IP Rating | IP30 |
| Dimensions | 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in) |
| Weight | 150 g (0.33 lb) |
| Installation | Desktop |
| Environmental Limits | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3 |
| Safety | UL 60950-1 |
| Vibration | IEC 60068-2-6 |
| MTBF | |
| Time | 2,272,562 hrs |
| Standards | Telcordia (Bellcore), GB |
Long-Distance Transmission
Supports data transmission over distances up to 5 km for multi-mode fiber and 40 km for single-mode fiber.
Noise Immunity
Fiber optic communication is immune to electromagnetic interference (EMI) and radio frequency interference (RFI).
Auto Baudrate Detection
Automatically adjusts to the baud rate of connected devices.
Wide Operating Temperature Range
Operates reliably in temperatures ranging from -40 to 85°C.
Compact Design
Easy to install in space-constrained environments.
Applications of MOXA TCF-90 Series
Industrial Automation
In industrial automation, reliable communication between sensors, controllers, and other devices is essential. The MOXA TCF-90 Series converters ensure data integrity and long-distance communication, making them ideal for automated systems.
Transportation Systems
For transportation systems, particularly railways and highways, robust data transmission is critical. These converters provide the necessary reliability and noise immunity to ensure smooth operation of communication systems.
Power and Energy
In power and energy applications, precise and reliable data transmission is crucial for monitoring and control. The MOXA TCF-90 Series converters facilitate efficient communication, enhancing the overall reliability of these systems.
Oil and Gas
In the oil and gas industry, communication systems must operate reliably in harsh environments. The MOXA TCF-90 Series converters, with their wide temperature range and noise immunity, are well-suited for these conditions.
