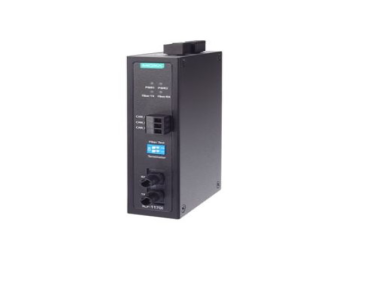

MOXA ICF-1170I Series Fieldbus-to-Fiber Converters
2463-HW-MAXO-031
Overview
In the ever-evolving industrial sector, the need for efficient and reliable data communication is critical. The MOXA ICF-1170I Series Fieldbus-to-Fiber Converters are designed to address this need by converting Fieldbus signals to fiber optic signals. These converters ensure secure, long-distance communication while enhancing data integrity and noise immunity, making them indispensable in various industrial environments.
| Specification | Details |
|---|---|
| Serial Interface | |
| Optical Fiber | 100BaseFX ports (multi-mode ST connector) |
| CAN Interface | |
| Isolation | 2 kV (built-in) |
| No. of Ports | 1 |
| Signals | CAN_L, CAN_H, CAN Signal GND |
| Terminator | N/A, 120 ohms (by DIP) |
| Power Parameters | |
| Input Current | 221 mA @ 12 to 48 VDC |
| Power Consumption | 221 mA @ 12 to 48 VDC |
| Input Voltage | 12 to 48 VDC |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Connector | Terminal block (for DC models) |
| Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 178 g (0.39 lb) |
| Installation | DIN-rail mounting |
| Environmental Limits | |
| Operating Temperature | ICF-1170I-M-ST: 0 to 60°C (32 to 140°F) ICF-1170I-M-ST-T: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Safety | EN 62368-1, UL 508 |
| Environmental Testing | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3 |
| Vibration | IEC 60068-2-6 |
| MTBF | |
| Time | 792,085 hrs |
| Standards | Telcordia (Bellcore), GB |
Long-Distance Communication
Supports data transmission up to 45 km with single-mode fiber.
Enhanced Noise Immunity
Fiber optic transmission is immune to electromagnetic interference (EMI) and radio frequency interference (RFI).
Redundant Power Inputs
Ensures continuous operation with dual power inputs.
Wide Operating Temperature Range
Reliable performance in temperatures ranging from -40 to 75°C.
Auto Baudrate Detection
Automatically adjusts to the baud rate of the connected Profibus device.
