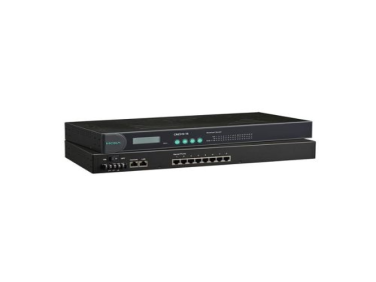

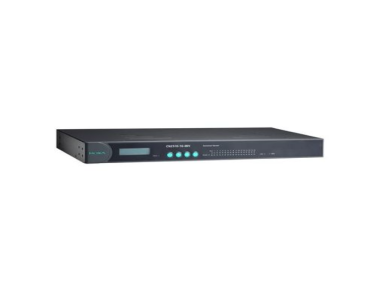

MOXA CN2510 Serial Device Server
2447-HW-MAXO-013
Overview
The MOXA CN2510 Serial Device Server are indispensable tools for modern network infrastructure. Their versatility, reliability, and advanced features make them an excellent choice for various industrial applications. By integrating these servers into your network, you can enhance efficiency, reduce costs, and improve data communication across your systems.
| Category | Specification |
|---|---|
| Ethernet Interface | |
| 10/100BaseT(X) Ports | 1 |
| Ethernet Software Features | |
| Management | Device Search Utility (DSU), DHCP Client, TCP/IP, UDP |
| MIB | MIB-II |
| Security | RADIUS |
| Unicast Routing | RIPV1/V2, Static Route |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
| Serial Interface | |
| Connector | 8-pin RJ45 |
| No. of Ports | 16 |
| Serial Standards | RS-232 |
| Operation Modes | Terminal mode |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Power Parameters | |
| Input Current | 125 mA @ 110 VAC |
| Input Voltage | 100 to 240 VAC (47 to 63 Hz) |
| Physical Characteristics | |
| Housing | Metal |
| Installation | 19-inch rack mounting |
| Dimensions | 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in) |
| Weight | 2,700 g (5.95 lb) |
| Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -20 to 70°C (-4 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Safety | EN 60950-1, UL 60950-1 |
| MTBF | 654,195 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
Versatile Connectivity Options
MOXA CN2510 servers support a wide range of serial interfaces, including RS-232, RS-422, and RS-485, ensuring compatibility with various devices. This flexibility allows seamless integration into existing systems without requiring significant modifications.
High Performance and Reliability
Equipped with a powerful processor, these servers provide fast and reliable data transmission. The built-in surge protection and redundant power inputs enhance their reliability, ensuring uninterrupted operation even in challenging environments.
Easy Configuration and Management
The MOXA CN2510 servers come with user-friendly management software that simplifies the configuration and monitoring process. The web-based interface allows for remote management, making it easy to oversee multiple devices from a central location.
Robust Security Features
Security is paramount in any networked system. MOXA CN2510 servers offer advanced security features such as SSL encryption, IP filtering, and password protection, safeguarding your data from unauthorized access.
Compact and Durable Design
Designed for industrial environments, these servers feature a compact, rugged design that can withstand harsh conditions. Their DIN-rail or wall-mount options provide flexible installation solutions to suit various settings.
Applications of MOXA CN2510 Serial Device Server
Industrial Automation
In industrial settings, MOXA CN2510 servers are used to connect programmable logic controllers (PLCs), sensors, and other serial devices to central monitoring systems. This enables efficient control and monitoring of manufacturing processes.
Transportation Systems
These servers play a critical role in transportation systems by connecting ticketing machines, passenger information systems, and control units to the central network. This ensures smooth operation and real-time data exchange.
Energy and Utilities
MOXA CN2510 servers are ideal for energy and utility applications, where they facilitate communication between meters, remote terminal units (RTUs), and control centers. This helps in efficient data collection and management of resources.
Building Automation
In building automation, these servers connect various control systems such as HVAC, lighting, and security systems to the network. This integration allows for centralized control and improved energy efficiency.
