MikroTik wAP ac LTE kit
TF:
006722-HW-MICROTIK-022
Overview
wAP ac LTE kit (2024)A refresh of the classic dual-band wAP LTE kit with Gigabit Ethernet – this time with a brand new LTE modem that brings the PRICE DOWN and the performance UP!
| Product code | wAPGR-5HacD2HnD&EC200A-EU |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 488-896 (auto) MHz |
| Switch chip model | IPQ-4018 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $169.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 12 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 8 (900MHz) / 3 (1800MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz) |
| LTE TDD bands | 40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz) |
| TAC | 86314105 |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, E-MARK, EAC, ROHS |
| IP | 54 |

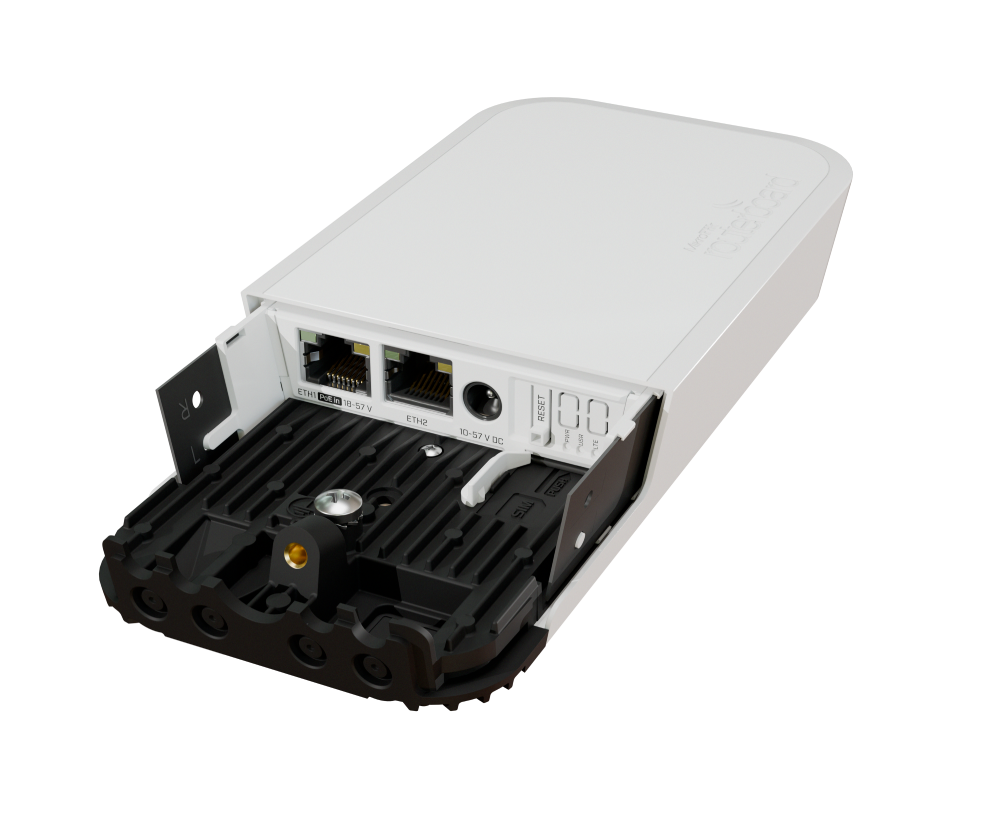

wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.
