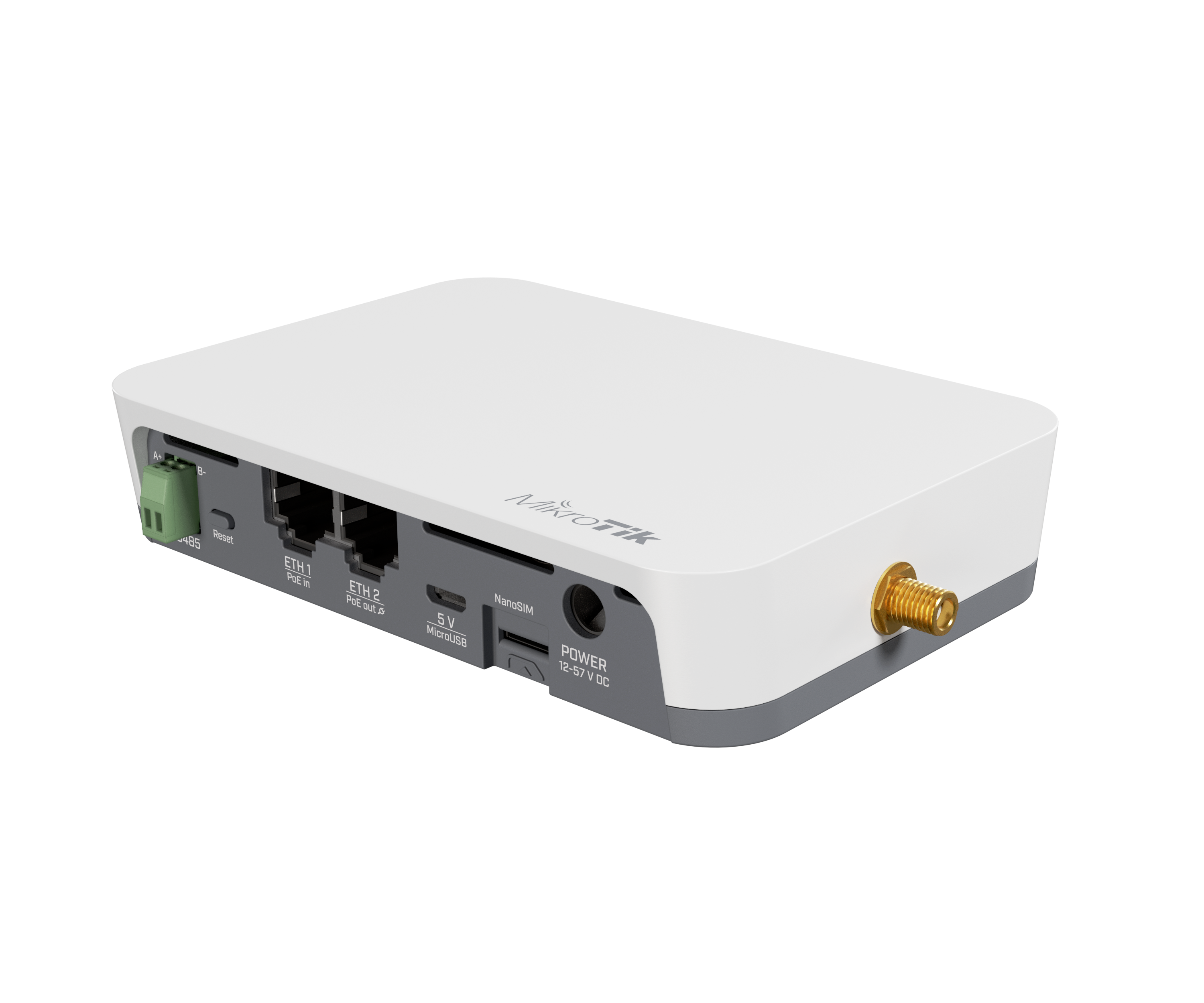

MikroTik KNOT LR8G kit
-
NG # 006705-HW-MICROTIK-005
Manufactured by:
The KNOT LR8G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment. CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.
Specification
Product code RB924iR-2nD-BT5&BG770A&R11e-LR8G Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650 MHz Switch chip model QCA9531 RouterOS license 4 Operating System RouterOS v7 Size of RAM 64 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $179.00
Powering
| Details | |
|---|---|
| MicroUSB input Voltage | 5 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 6 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 650 mA |
| Max out per port output (input 30-57 V) | 450 mA |
| Total output power | 12 |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 2 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Smart card (Nano SIM) |
| MiniPCI-e slots | 1 |
| Serial console port | RS485 |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Bluetooth version | 5.2 |
| Bluetooth RF connector type | uUFL |
| GPS RF connector type | SMA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Description
Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR8G ties everything together and keeps everything connected.
