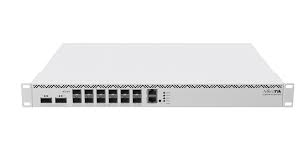

MikroTik CCR2216-1G-12XS-2XQ
-
NG # 006710-HW-MICROTIK-010
Manufactured by:
Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
Specification
Product code CCR2216-1G-12XS-2XQ Architecture ARM 64bit CPU AL73400 CPU core count 16 CPU nominal frequency 2000 MHz Switch chip model 98DX8525 Dimensions 443 x 367 x 44 mm RouterOS license 6 Operating System RouterOS v7 Size of RAM 16 GB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -20°C to 60°C IPsec hardware acceleration Yes Suggested price $2795.00
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 128 W |
| Max power consumption without attachments | 80 W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of M.2 slots | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Description
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!
There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
