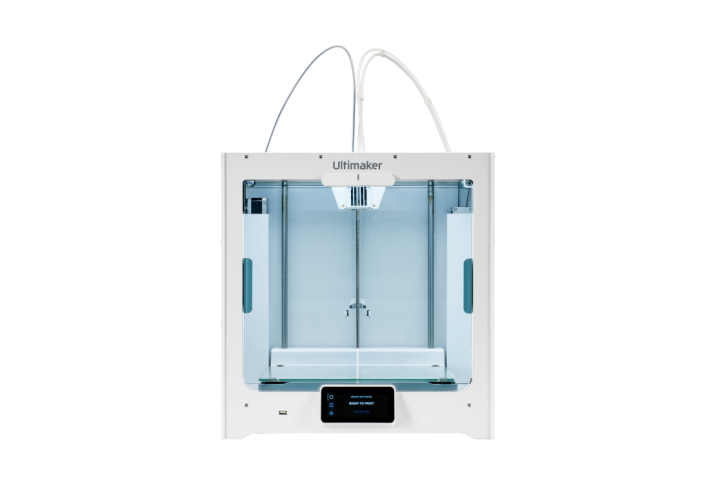

UltiMaker S5 3D Printer
TF:
006474-HW-TEK-074
Overview
UltiMaker S5 to do its job while you do yours. Its advanced active bed leveling ensures a perfect first layer, glass doors control the airflow, and dual filament flow sensors will pause your print and notify you if you run out of material.
| Dimensions | |
| Build volume | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled dimensions | W 495 x D 585 x H 780 mm (W 19.5 x D 23 x H 30.7 inches) |
| Print technology | Fused Deposition Modeling (FDM) |
| Compatible filament diameter | 2.85 mm |
| Weight | 29.1 kg (64.2 lbs) |
| Maximum power output | 500 W |
| Operational parameters | |
| Nozzle temperature | 180 - 280 °C |
| Nozzle heat-up time | < 2 minutes |
| Operating sound | < 51 dBA |
| Build plate leveling | Advanced active leveling |
| Build plate | Glass build plate |
| Build plate heat-up time | < 5 minutes (from 20 to 60 °C) |
| Operating ambient temperature | 15 - 32 °C (59 - 90 °F) |
| Non-operating temperature | 0 - 32 °C (32 - 90 °F) |
| Printer properties | |
| Layer resolution | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
| XYZ resolution | 6.9, 6.9, 2.5 micron |
| Feeder type | Dual-geared feeder, reinforced for composite materials |
| Display | 4.7-inch (11.9 cm) color touchscreen |
| Print core replacement | Swappable print cores |
| Print head | Dual extrusion print head with an auto-nozzle lifting system, swappable print cores. |
| Nozzle diameters | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Ecosystem, Safety & Compliance | |
| Supplied free software | UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools |
| Supported OS | Plugin integration |
| Plugin integration | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported file types | UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| File transfter | Wi-Fi (2.4 GHz), Ethernet, USB |
| Certification | CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use |
UltiMaker S5, you are not only getting a market-leading 3D printer – you gain access to the UltiMaker platform. Access all the tools you need to start 3D printing – increased security, workflow management, and knowledge. UltiMaker brings it to your door, with features including a Digital Library for easy storage and sharing of your part files, an IT knowledge base, and e-learning courses.
