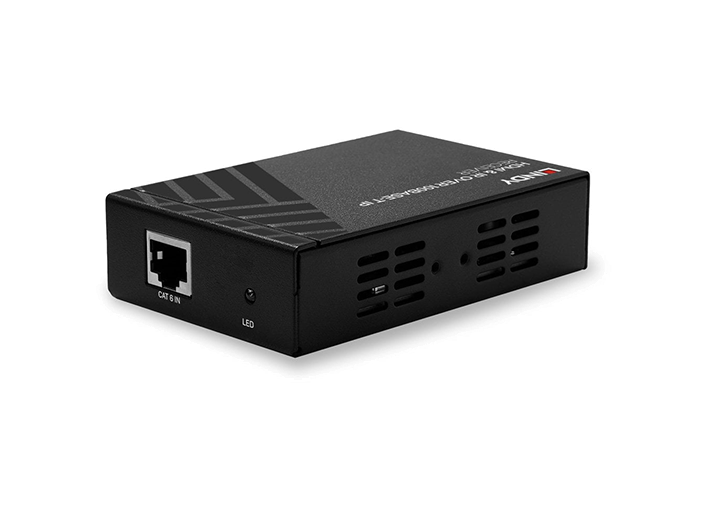

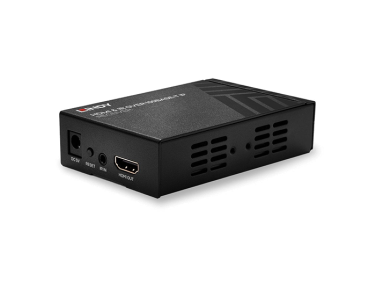

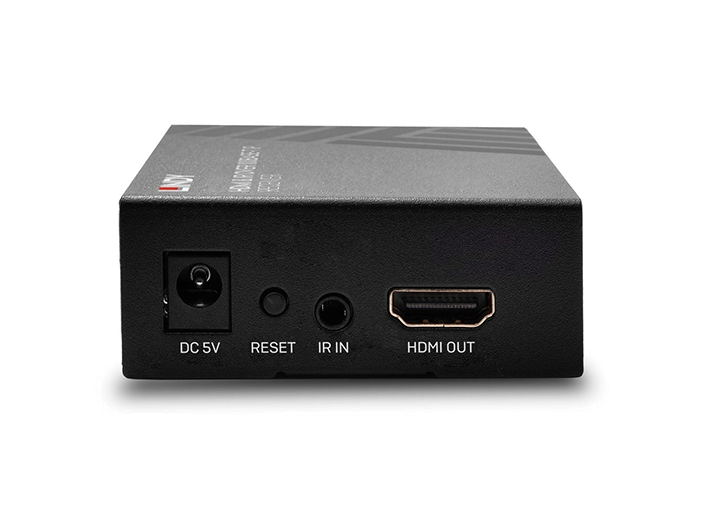

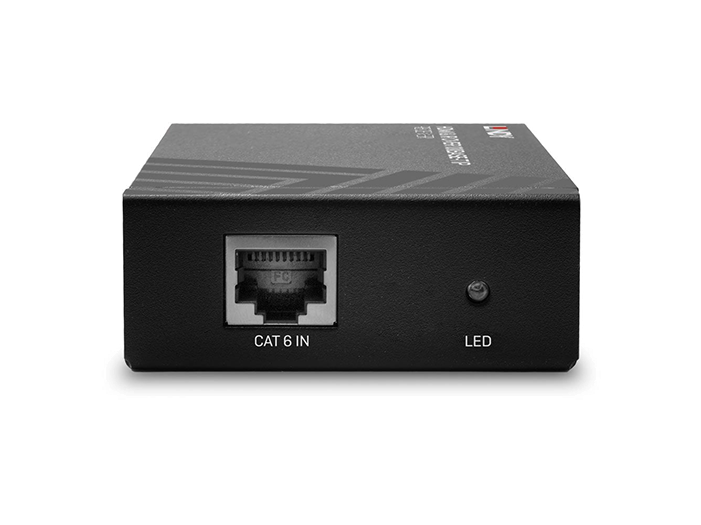

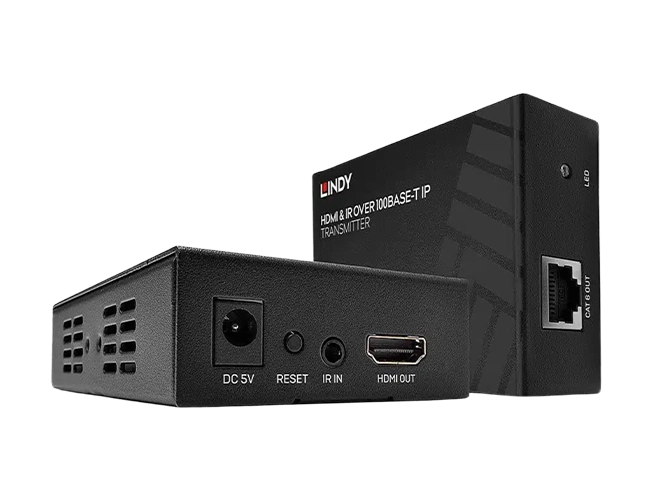

LINDY HDMI & IR OVER 100BASE-T IP EXTENDER
-
NG # 00108-HW-LIN-008
-
MF # 00108-HW-LIN-008
Manufactured by:
Designed to distribute HD video signals over long distances the HDMI over IP Extender is a cost effective solution for digital signage, presentation and demonstration applications
Specification
Ideal for schools, hotels, hospitals, shops, shopping centres and business premises Contents Transmitter unit, receiver unit, IR emitter cable, IR receiver cable, multi-country power supply (EU, UK, US & AUS) and manual Housing Material Metal Extend HDMI signals over a Ethernet Network or 100m using a single CAT6 cable Designed digital signage, presentations and demonstrations Supports resolutions up to 1080p with 8 bit colour and HDCP Maximum Resolution 1920x1080@60Hz 4:4:4 8bit Supported Bandwidth 4.95 Gbps AV Interface HDMI, Interface Standard: HDMI 1.2 Transmitter Input HDMI (Female), Transmitter Output: RJ45 (Female), IR (Female) Receiver Input RJ45 (Female), IR (Female) Receiver Output HDMI (Female)
Description
The HDMI over IP Extender is capable of broadcasting 1080p Full HD over a standard network*, in 1 to 1, 1 to many and many to many configurations. Using up to 3 layers of active network equipment to distribute signals the HDMI over IP Extender is ideal for distributing video content throughout large buildings such as schools, hotels, hospitals, shops, shopping centres and business premises. The HDMI over IP Extender is sold with Transmitter and Receiver units included with additional Receivers available separately providing the ultimate in flexibility at the point of installation and the ability to easily expand the installation at a later date.
