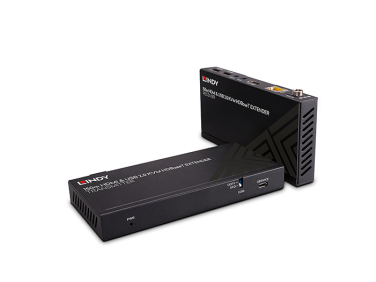

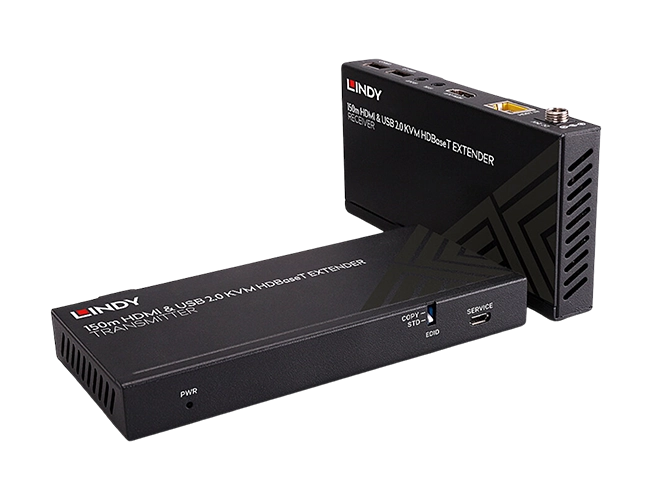

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender

  • NG # 00110-HW-LIN-010

  • MF # 00110-HW-LIN-010

Manufactured by:

This seller generally responds in under 48 hours

The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

Add to favorites | Compare this product

Specification

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0, USB 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    - 100m (328.08ft) - 3840x2160@60Hz 4:4:4 8bit (HDBT mode)
    - 150m (492.12ft) - 1920x1080@60Hz (Long Reach mode)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: DIP switch with Copy function
  • Supported Audio: HDMI Audio Pass-through
  • Separate Audio Ports: -
  • IR Support: 20 - 60KHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010-A0
  • Special Features: PoC (Power over Cable), Long Reach Mode

Connectors

  • Transmitter Input: HDMI Type A (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female)
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) per unit
  • Housing Material: Metal
  • Net Weight: 0.79kg (1.74lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in)
  • Gross Weight: 1.02kg (2.25lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDBaseT HDMI KVM Extender, Transmitter
  • HDBaseT HDMI KVM Extender, Receiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • USB Type A to Type B Cable, 1.5m
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 39384
  • EAN: 4002888393843

Description

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.



PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
