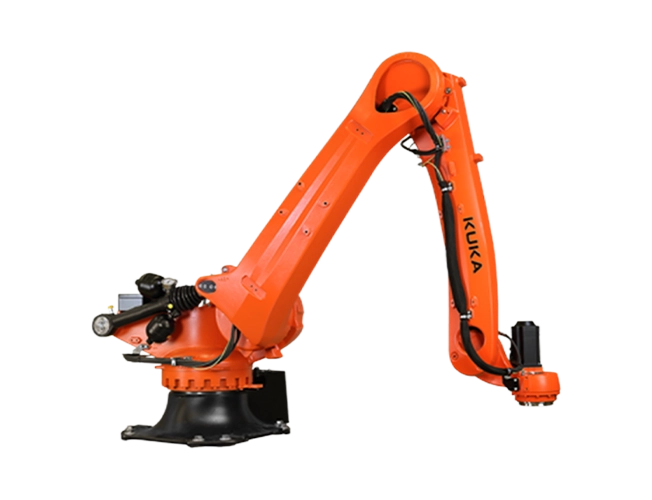

KUKA KR QUANTEC PA
00110-HW-KUKA-011
Overview
Our family of KR QUANTEC PA robots are the fastest, strongest and most precise palletizing robots on the market. Invest in maximum compactness and top process efficiency.
| Category | High Payloads (80-300 kg) |
| Extension | Standard |
| Version environment | Food |
| Payload | 180 kg, 240 kg |
| Maximum reach | 3195 mm |
| Number of controlled axes | 4 |
| Weight | 1103 kg |
| Ambient temperature | 0 °C to + 55 °C |
| Protection class | IP 65 |
The palletizing robots of the KR QUANTEC PA family meet all of today’s automation requirements: minimized space requirements, shorter cycles, maximum availability and low operating costs. Thanks to their slim design, these five-axis robots can reach stack heights of over 2,500 millimeters. The hollow shaft with a diameter of 60 millimeters allows for protected routing of the energy supply.
The KR QUANTEC PA can perform palletizing tasks quickly and precisely even in ice-cold temperatures. Thanks to the Arctic design, it needs no protective suit. Its immunity to temperatures well below zero makes it a palletizing professional in the food sector. The KR QUANTEC PA Arctic can even work with the utmost precision at minus 30 degrees Celsius.
