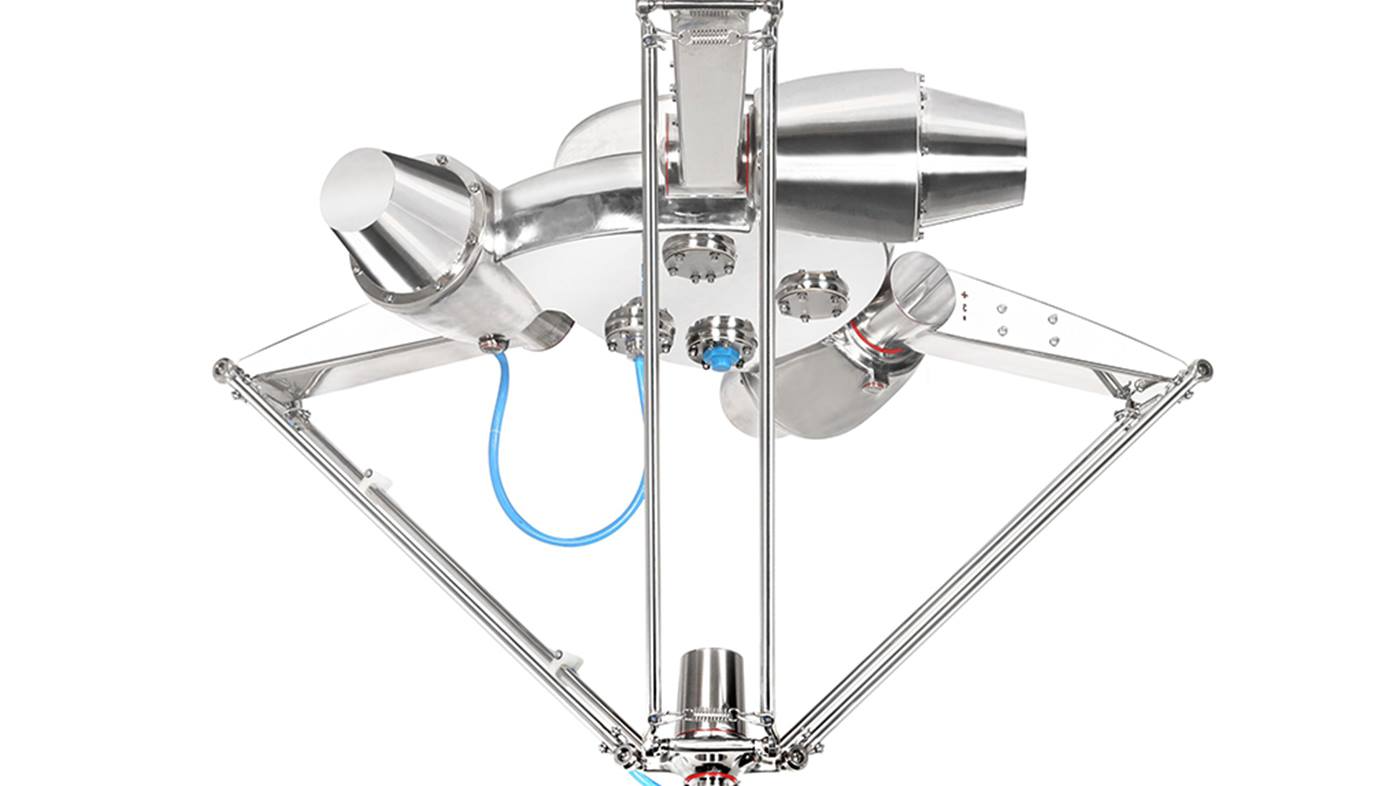

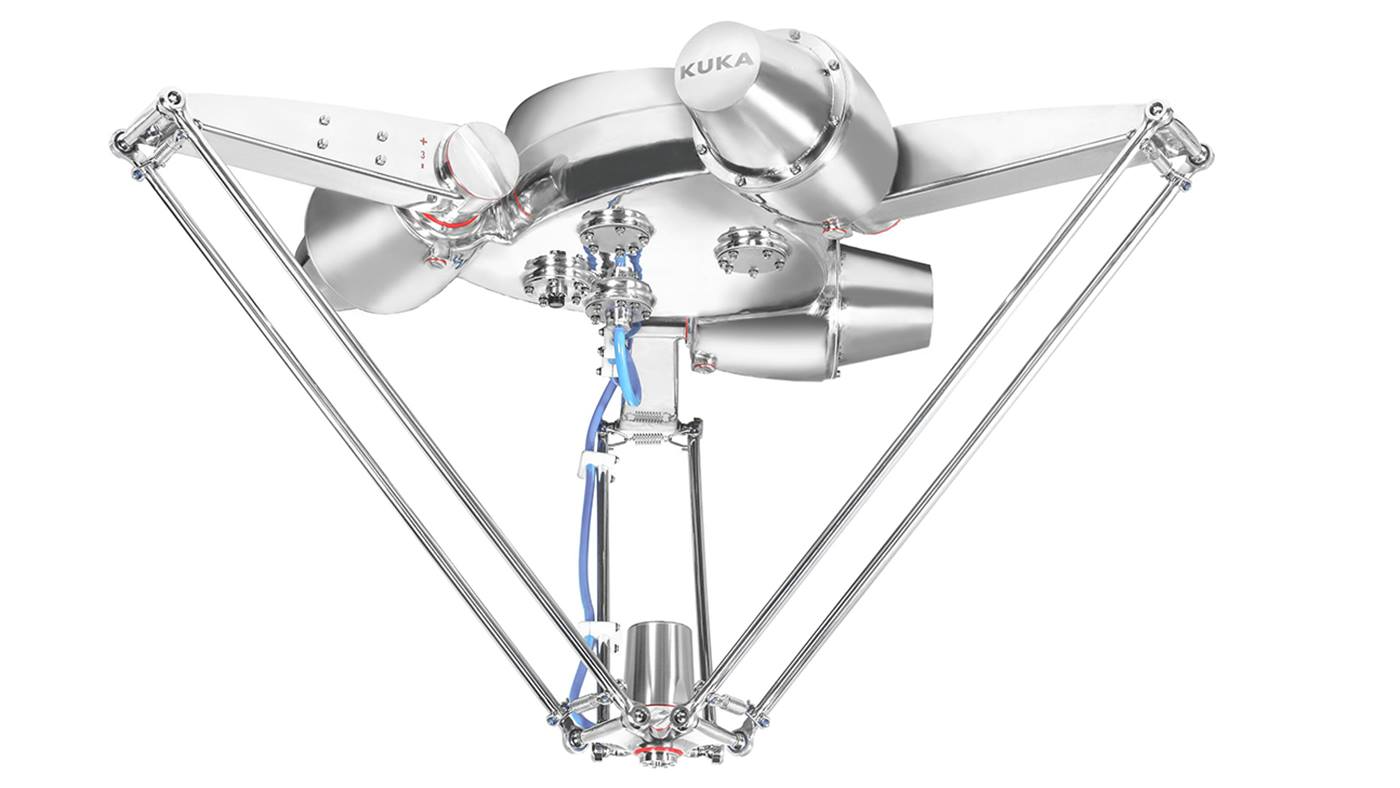

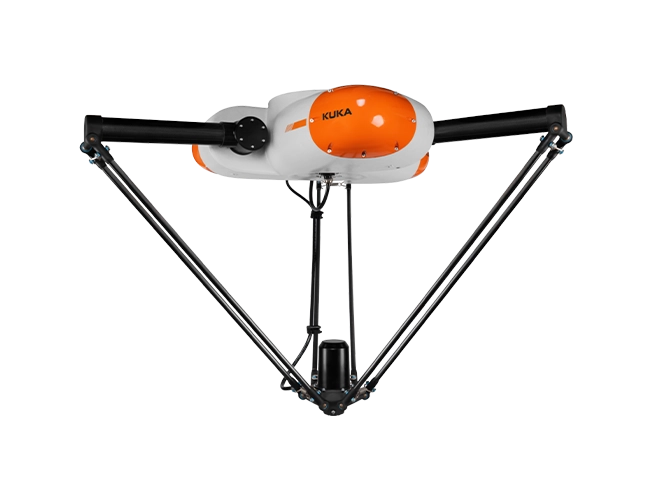

KUKA KR DELTA
-
NG # 00106-HW-KUKA-007
Manufactured by:
High-speed robots designed in a hygienic machine variant for precise handling and picking of small parts across various industries, including food, pharmaceuticals, and electronics.
Specification
| Type | delta |
| Number of axes | 4-axis |
| Function | handling, for assembly, packaging, pick-and-place, palletizing |
| Mounting | ceiling-mount |
| Application domain | for the food industry, for the electronics industry, for the pharmaceutical industry, for the cosmetics industry, for small parts |
| Protection level | IP67 |
| Other characteristics | high-speed, waterproof, hygienic |
| Payload | 3 kg (6.614 lb), Max.: 6 kg (13.228 lb), Min.: 0 kg (0 lb) |
| Reach | 1,200 mm (47.24 in) |
| Repeatability | 0.1 mm (0.0039 in) |
Description
KUKA DELTA robots are perfectly optimized for high-speed pick-and-place applications, particularly in sectors like food processing. The KR DELTA model is specifically designed for hygienically sensitive environments, making it ideal for handling food, pharmaceuticals, and electronic components.
Industrial robots are fundamental to modern manufacturing and will be even more critical in the factories of the future. The growing demand for industrial robots is driven by the need for flexible, intelligent systems capable of executing repetitive tasks efficiently, with consistent quality, a broad range of motion, and minimized cycle times. The delta robot meets these requirements effectively.
