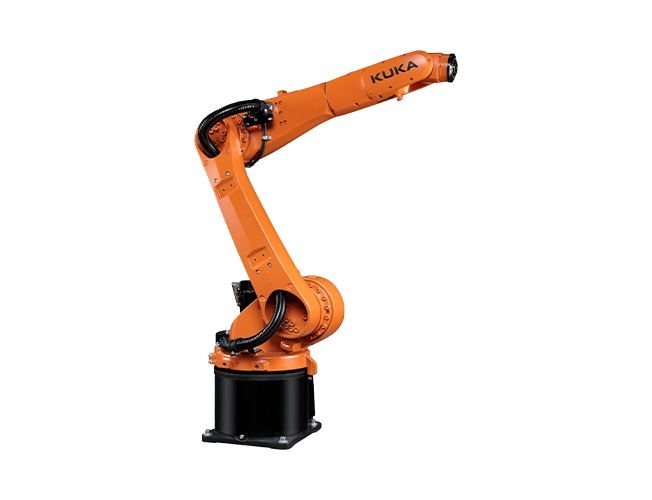

KUKA Articulated robot KR CYBERTECH nano
00103-HW-KUKA-004
Overview
The KR CYBERTECH nano family of industrial robots excels in tasks such as handling small components, assembly, palletizing, and arc welding. Control options include the KR C4 compact or KR C4 small size-2.
| Type | articulated |
| Number of axes | 6-axis |
| Function | handling, palletizing, arc welding |
| Mounting | wall-mounted |
| Other characteristics | compact |
| Payload | Max.: 10 kg (22.046 lb) Min.: 6 kg (13.228 lb) |
| Reach | Max.: 1,840 mm (72.44 in) Min.: 1,420 mm (55.91 in) |
Top performance with a high power density: the specialized process robots of the KR CYBERTECH nano product family are perfectly tailored to handle small components. Benefit from maximum diversity for greater economical flexibility with minimum investment and energy costs.
The industrial robots of the KR CYBERTECH nano family are optimized for handling small components, assembly, palletizing and arc welding. They can be controlled with the KR C4 compact or KR C4 smallsize-2.
The very fine payload intervals of six, eight and ten kilograms and the nine perfectly coordinated robot types mean that you can select precisely the robot you actually need – for maximum efficiency and cost-effectiveness.
