OPTIFLUX 1050
-

NG # 006602-HW-KROHNE-002

Manufactured by:

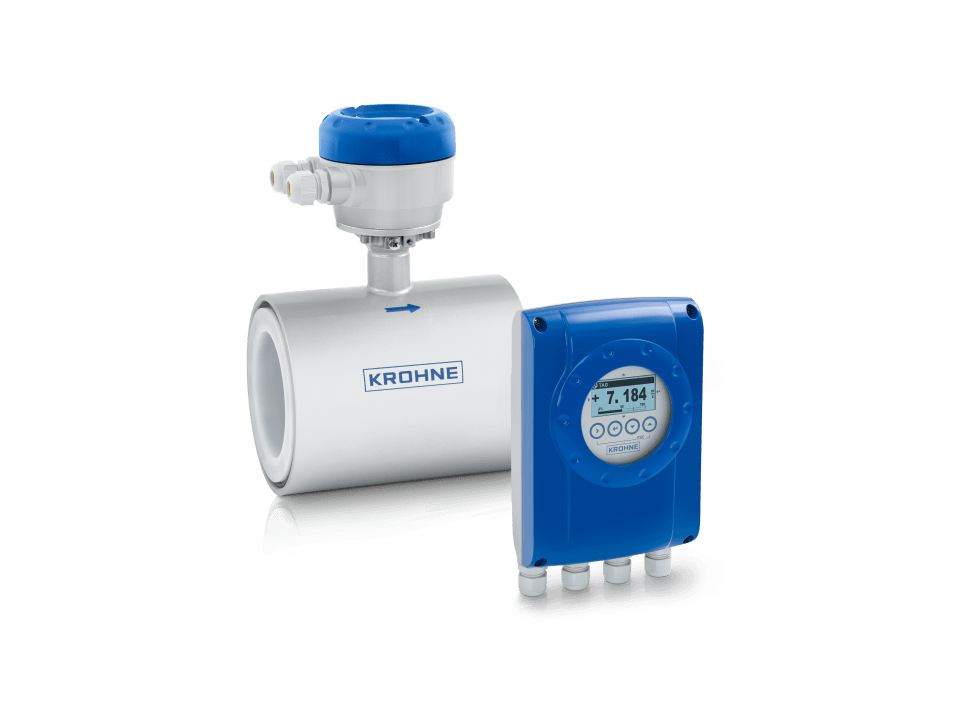

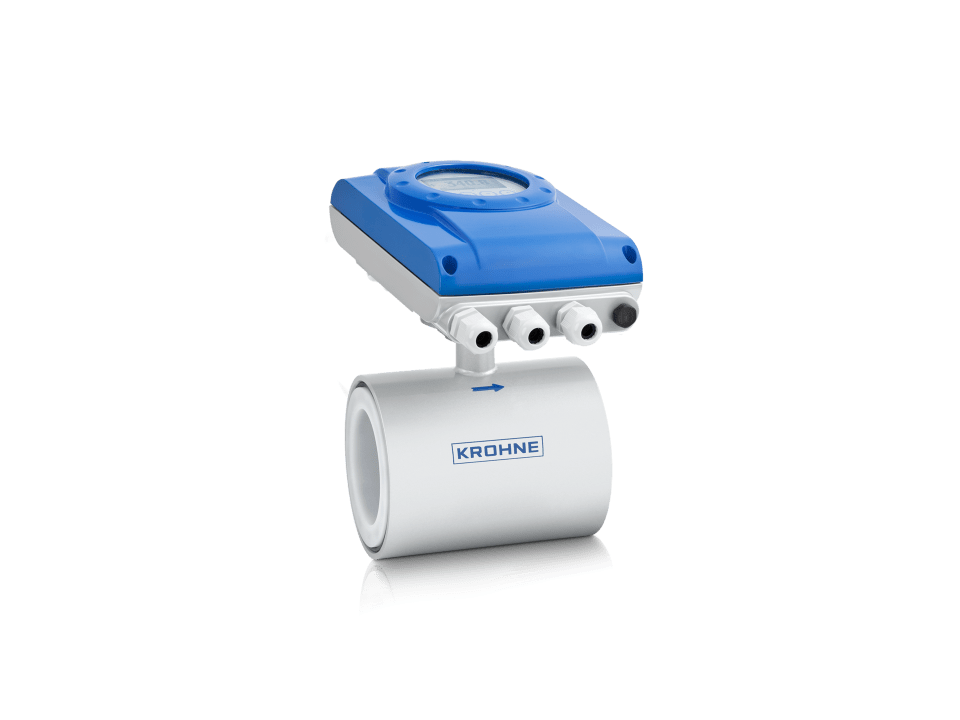

The OPTIFLUX 1050 is a cost-effective electromagnetic flowmeter (EMF) with lightweight wafer-style design. The meter is a very economical solution for simple applications with conductive liquids (≥ 5 μS/cm) involving low solid content (up to 10%). This particularly includes applications in water, wastewater, mobile applications, agriculture or firefighting where extremely high accuracy, extensive diagnostics or a wide range of communication options are not a priority. The extra isolation of the electronic device and housing makes this EMF also suitable for use in areas with extreme humidity.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For basic applications with conductive liquids |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig  |
| Process temperature | -25…+120°C/ -13…+248°F  |
Materials
| Liner | Perfluoroalkoxy alkane (PFA) |
Process connections
| Flange connections | EN (1092-1): DN10…150 ASME (B 16.5): ⅜…6" JIS (B 2220): 10…150A  |
| Other connections | Sandwich (wafer) connection: DN10...150 ⅜…6" 10…150A  |
Approvals/Standards
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART®, Modbus RTU |
Description
Electromagnetic flowmeter for basic applications with conductive liquids
Cost-effective flow measurement of liquids (≥5 μS/cm) up to +120°C / +248°F
Extra isolation of electronics for use in high humidity areas
Wafer-style design: DN10…150 / ⅜…6", max. PN40 / ASME Cl 300
4…20 mA, pulse, frequency, status, HART®, Modbus
