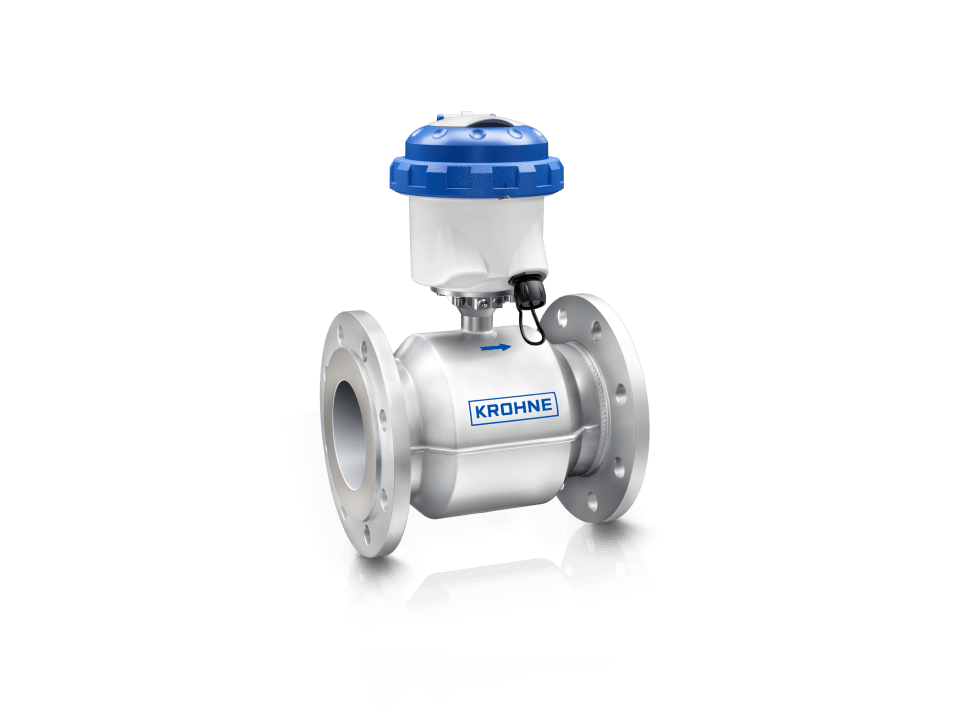

Krohne WATERFLUX 3070
006611-HW-KROHNE-011
Overview
The WATERFLUX 3070 is a battery powered electromagnetic water meter for use in water abstraction wells, district metering areas (DMA) and custody transfer measurement of potable water (MI-001, OIML R49).
General information
| Product type | Flowmeter |
| Product family name | WATERFLUX |
| Product positioning | For district metering of potable water and custody transfer (CT) measurement |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -5…+70°C/ +23…+158°F |
Materials
| Liner | Polyamide polymer 11 (Rilsan®) |
Process connections
| Flange connections | EN (1092-1): DN25…600 ASME (B 16.5): 1…24" JIS (B 2220): 25…600A |
| Thread connections | Male: G1, G1½, G2 |
Installation conditions
| Inlet run | 0D |
| Outlet run | 0D |
Approvals/Standards
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Discrete outputs | Pulse, Status |
| Digital outputs | Modbus RTU |
With optional pressure and temperature sensors, the meter can also be used for leak detection, quality control and pressure management systems. Unlike mechanical water meters, the WATERFLUX 3070 is maintenance-free and offers a much larger turn down ratio (1000:1). Its measuring tube with a rectangular and reduced cross-section enables a stable measurement even at low flow rates. Due to the optimized flow profile, the WATERFLUX 3070 can be installed virtually anywhere without straight inlet or outlet runs – behind pipe bends, slide valves or a reduction in the pipe. Even burial installation or use in flooded areas is possible.
