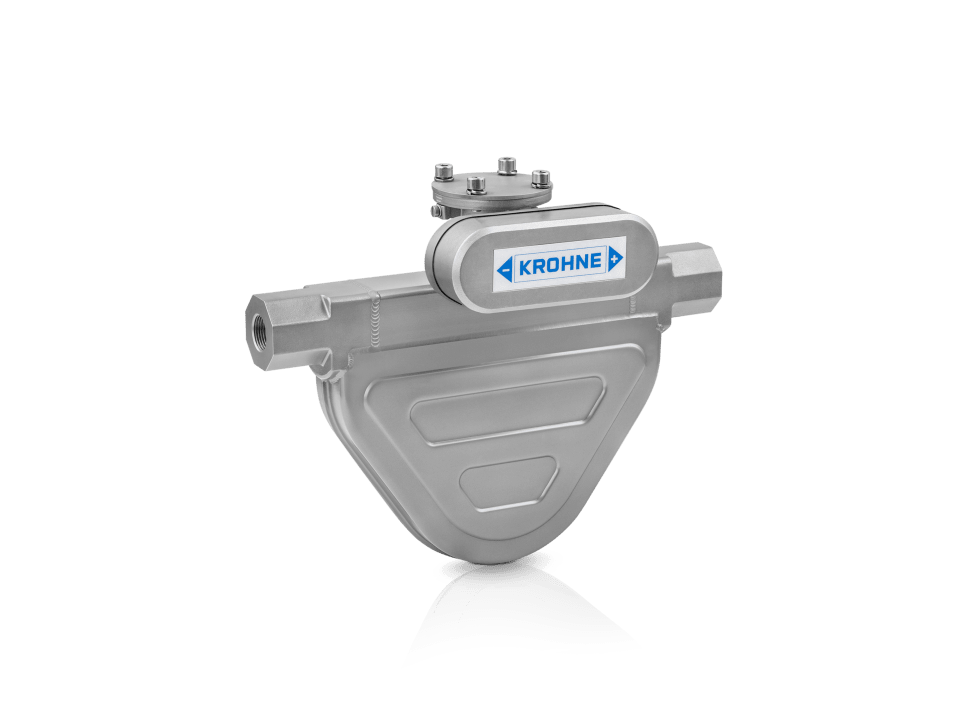

Krohne OPTIGAS 4010
TF:
006620-HW-KROHNE-020
Overview
The OPTIGAS 4010 is a Coriolis mass flowmeter for the measurement of CNG (Compressed Natural Gas) and LPG (Liquefied Petroleum Gas). It is specifically designed for gas dispensing systems (up to 70 kg/m or 155 lb/m). The meter features a 3⁄4 NPT (female) connection. Corresponding adaptor options are also available. The Coriolis device is approved for use in hazardous areas.
General information
| Product type | Flowmeter |
| Product family name | OPTIGAS |
| Product positioning | For gas dispenser applications |
| Measurement principle | Coriolis |
| Measured media | Gases |
Operating conditions
| Process pressure | max. 350 barg/ 5076 psig |
| Process temperature | -40…+93°C/ -40…+200°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L) |
Process connections
| Thread connections | Female: ¾ NPT |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex |
Communication
| Digital outputs | Modbus RTU, EtherNet/IP™ |
Coriolis mass flowmeter for gas dispenser applications
High accuracy for CNG and LPG up to 70 kg/min / 155 lb/min
Thread: ¾ NPT (female); up to 350 bar / 5075 psi
Integrated Modbus, no separate converter
EtherNet/IP™ interface
