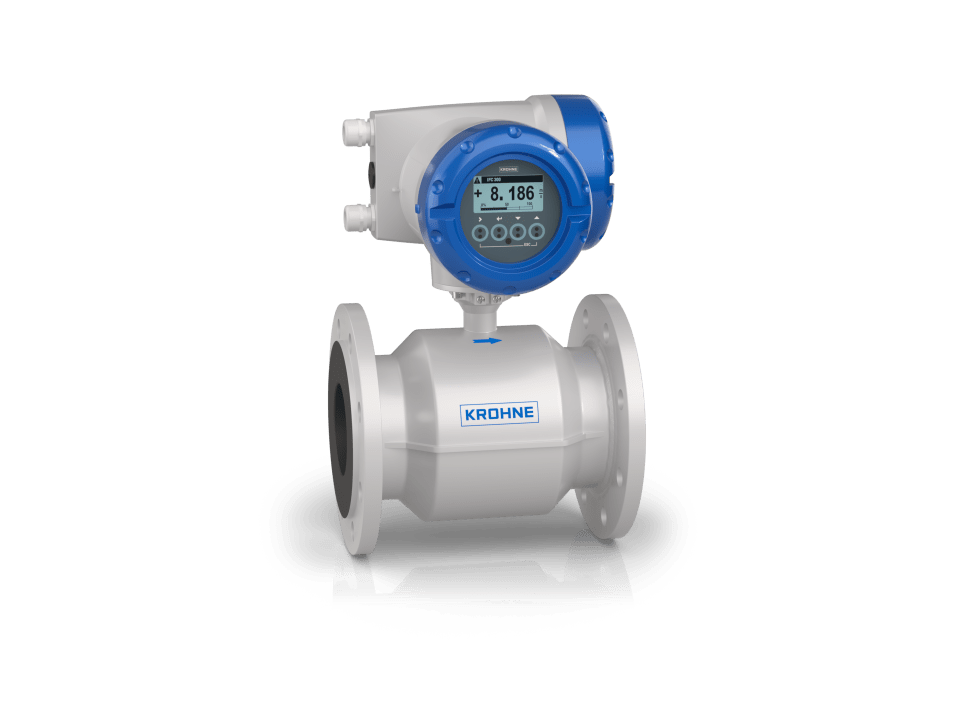

Krohne OPTIFLUX 2300
-
NG # 006608-HW-KROHNE-008
Manufactured by:
The OPTIFLUX 2300 is an electromagnetic flowmeter (EMF) for all demanding applications with water and wastewater. The high-end meter is particularly suitable for applications requiring high accuracy and extensive diagnostics.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For advanced water, wastewater and custody transfer (CT) applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | -5…+90°C/ +23…+194°F |
Materials
| Liner | Polypropylene (PP), Hard rubber |
Process connections
| Flange connections | EN (1092-1): DN25…3000 ASME (B 16.5): 1…120" JIS (B 2220): 25…1000A |
Approvals/Standards
| Certificates/Approvals Custody transfer (CT) | MI-001, OIML R49 |
| Certificates/Approvals Ex | ATEX, cQPSus, IECEx, NEPSI, EAC Ex, INMETRO, FM, CSA, KCs, PESO, IA |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, PROFINET |
Description
The EMF has the widest diameter range available in the market (DN25…3000 / 1…120") and complies with requirements for custody transfer (MID MI-001, OIML R49). The flowmeter allows for custody transfer (CT) measurement without inlet/outlet runs (0D/0D) according to OIML R49 accuracy class 1. It has a wide range of approvals for potable water. This makes the OPTIFLUX 2300 an effective alternative to mechanical water meters, not least in CT measurement of potable water.
