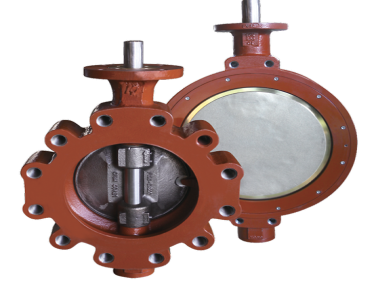

Keystone Series V30/V32 High Performance Butterfly Valves
006489-HW-KEYSTONE-089
Overview
Keystone Marine High Performance Butterfly valves offer effective, bi-directional sealing across a wide spectrum of service conditions
| Certifications | ABS |
| End Connection | Wafer, Lugged |
| Application | Tanker, Fueling, Crude and Product Transfer, Ballast Control |
| Material | 316 Stainless Steel, Ductile Iron, Cast Iron, Carbon Steel |
| Pressure Class | ASME |
| Seat/Seal Type | High performance |
| Shutoff Class | Zero Leakage |
| Valve Size | NPS 4 / DN 100, NPS 6 / DN 150, NPS 24 / DN 600, NPS 2-1/2 / DN 65, NPS 20 / DN 500 |
| Valve Size Standard | NPS |
| Valve Type | Butterfly |
| Media | Water, Vacuum, Liquid, Fuel Oil, Air |
| Stem | Adjustable packing |
The factory testing of every valve at full rating ensures a 150% tight shut-off, providing maximum reliability in critical applications. Designed according to JIS standards, the Pure-seal valve meets rigorous quality criteria for sealing and durability. The actuator mounting flange is built in compliance with ISO 5211, enhancing ease of use and compatibility with a wide range of actuators.
This valve features excellent sealing and elasticity, which contributes to its superior performance in demanding environments. Its one-piece through shaft offers maximum strength, further ensuring blow-out resistance, a critical factor in high-pressure applications. Additionally, the integrally cast disc position stop precisely locates the disc in the seat, maximizing both seat and seal life, providing added longevity and reduced maintenance requirements.
