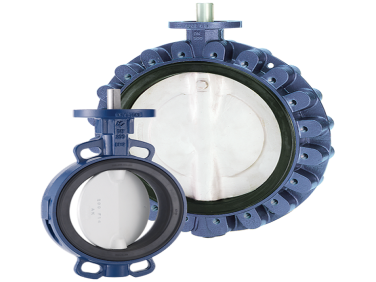

Keystone Model OptiSeal F14F17 Butterfly Valves
006486-HW-KEYSTONE-086
Overview
The valve features a top bushing designed to absorb actuator side thrust loads, ensuring smooth operation and prolonging the valve’s service life. Its actuator flange is built according to ISO 5211 standards, making it compatible with a wide range of actuators. Additionally, the valve's high-solids, glossy, silicone-free paint system offers superior corrosion resistance, making it ideal for harsh environments.
| Certifications | CUTR, SIL capable, PED |
| End Connection | Wafer, Lugged |
| Application | Winemaking, Beverages, Automotive, Air Circulation |
| Material | Super Duplex, Hastelloy, Epdm Rubber, Duplex, Cast Iron, Carbon Steel, Buna-N, 316L Stainless Steel, 316 Stainless Steel |
| Operating Temperature | Up to 250 F (120 C) |
| Pressure Class | PN |
| Process Connection Type | PN16 |
| Seat/Seal Type | Resilient |
| Shutoff Class | Zero Leakage |
| Valve Size | NPS 20 / DN 500, NPS 10 / DN 250, NPS 8 / DN 200, NPS 6 / DN 150, NPS 4 / DN 100, NPS 3 / DN 80, NPS 24 / DN 600, NPS 2-1/2 / DN 65, NPS 18 / DN 450, NPS 16 / DN 400, NPS 14 / DN 350, NPS 1-1/2 / DN 40 |
| Valve Size Standard | DN |
| Valve Type | Butterfly |
| Media | Liquids, Water, Hot Water, Liquid, Air |
| Stem | O-ring |
The valve seat is field-replaceable and provides full isolation between the body and stem from the flow, ensuring safety and durability in various operating conditions. The primary stem sealing exceeds the valve's pressure rating, offering enhanced leakage prevention, while a secondary shaft sealing acts as a backup for added safety. Notably, no flange gaskets are required, further simplifying installation and maintenance.
