N1046A 75/85/100 GHz, 1/2/4 Port, Electrical Remote Sampling Head Module
TF:
001706-HW-keysight-006
Overview
Engineered for uncompromised performance to 100 GHz and beyond
| Applications: | DCA-X Electrical Remote Head Module |
| Bandwidth Options: | Up to 100 GHz |
| Form Factor: | Module |
| Instrument Type: | Equivalent-Time |
| Max. Bandwidth: | 100 GHz |
| Max sample rate: | 250 kHz |
| Module Type: | Electrical |
| Operating System: | Windows 10 |
| Supported Filter Range: | 22.5 GHz to 130 GHz |
| Wavelength range: | n/a |
| Bandwidth: | >100 GHz |
| Electrical Channels: | 4 |
| Input type: | 1.0 mm |
| Intrinsic Jitter: | ≤ 90 fs rms |
| Max memory depth: | n/a |
| Maximum Bandwidth: | 100 GHz |
| Number of channels: | 1 electrical 2 electrical 4 electrical |
| Optical Channels: | 0 |
| Type: | Equivalent-Time |

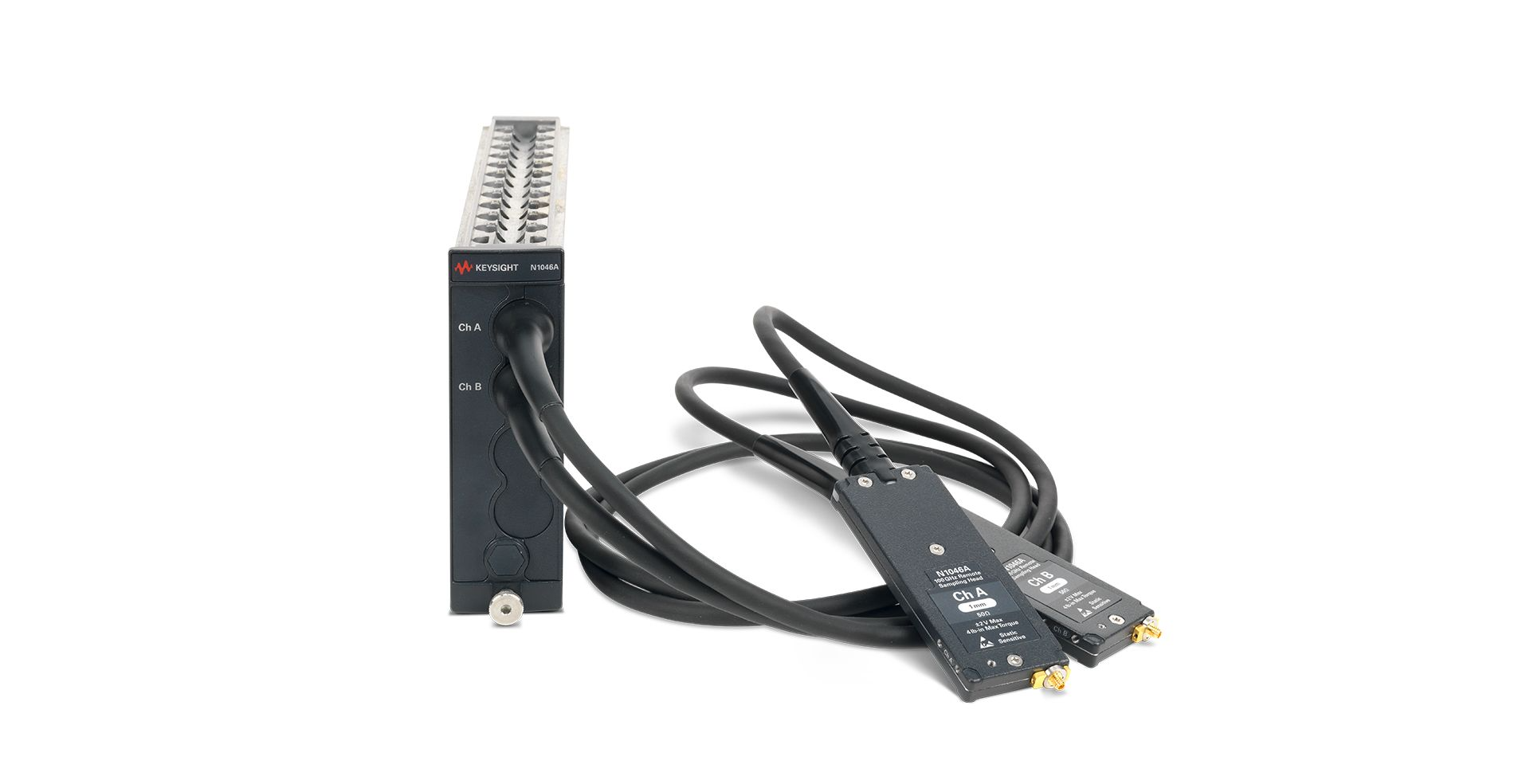

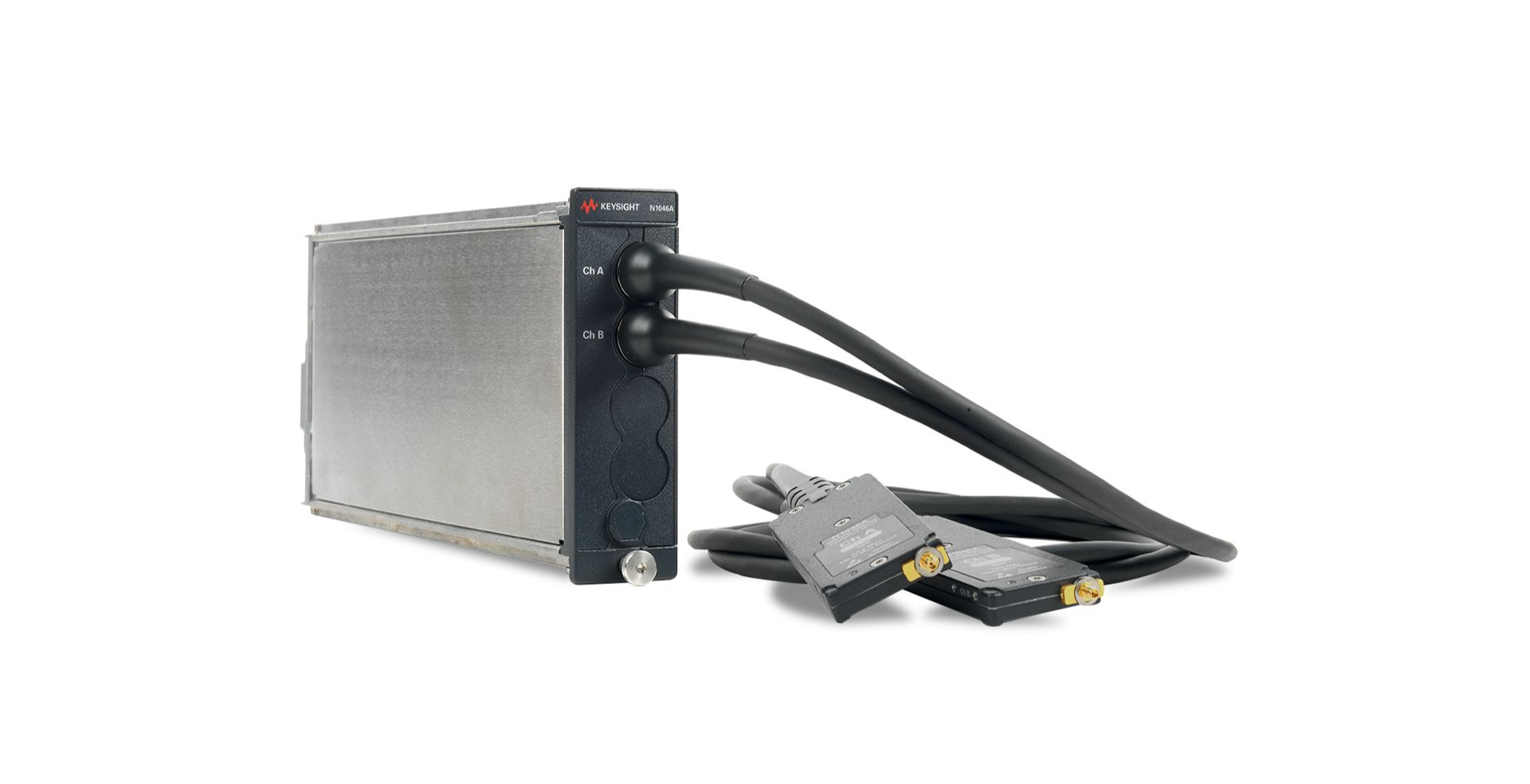

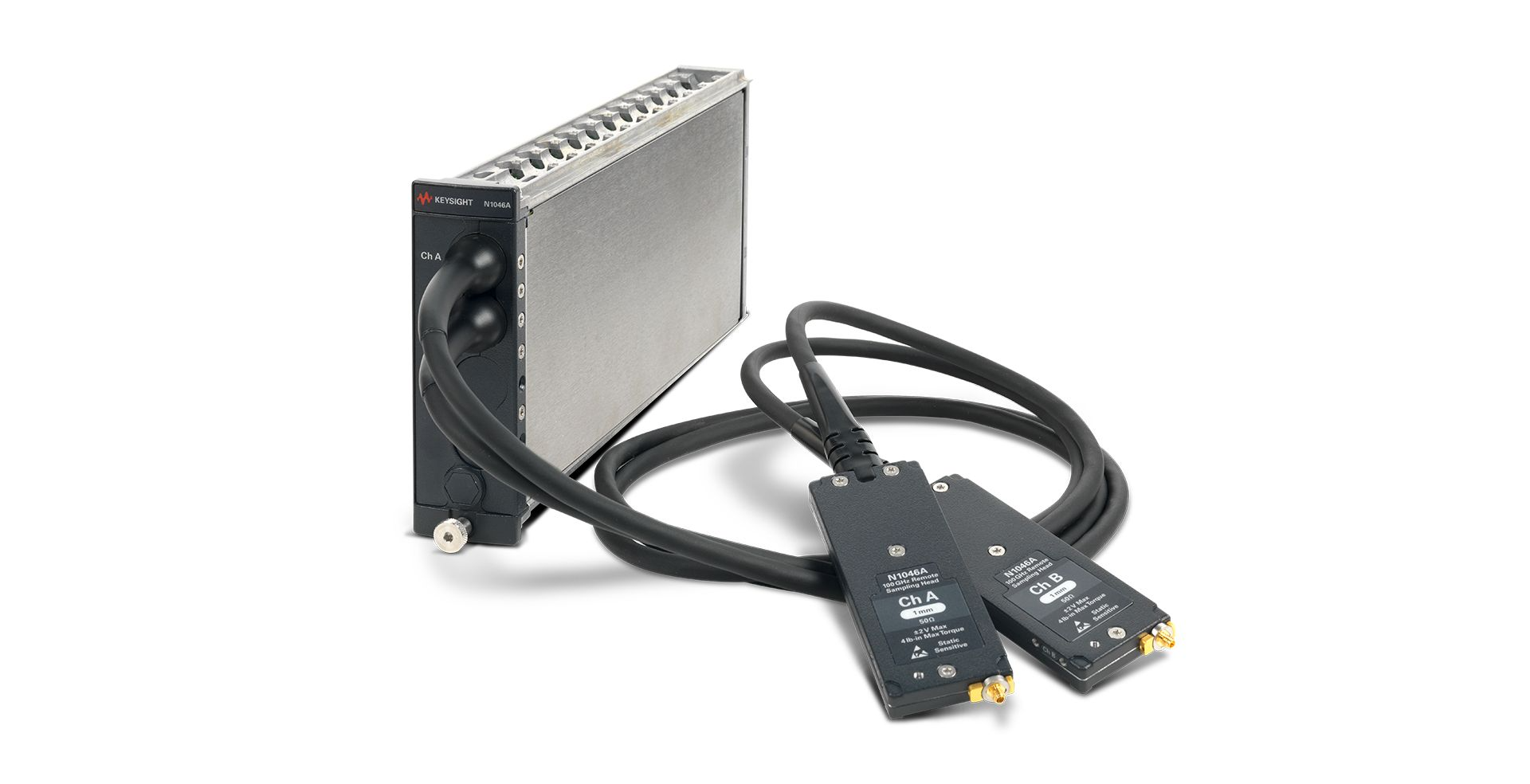

The N1046A remote sampling heads are modules for your N1000A DCA-X mainframe. Like all of Keysight's DCA modules, the N1046A provides a wide range of configurations and performance options to interchange the bandwidth, channel count, and features of your oscilloscope solution.
