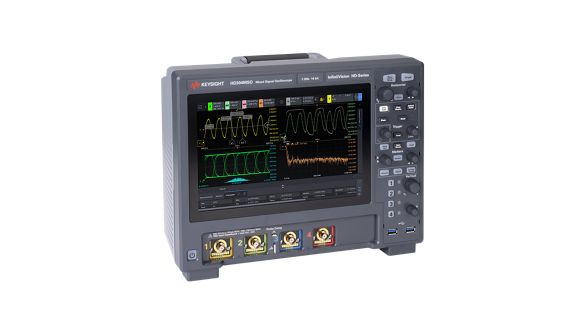

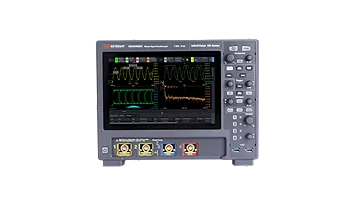

HD304MSO InfiniiVision Oscilloscope: 4 Analog Channels
TF:
001701-HW-keysight-001
Overview
The HD3 Series boasts impressive resolution with high accuracy, deep memory, four analog channels, and all new custom technology ranging from 200 MHz to 1 GHz.
- Experience bandwidths from 200 MHz to 1 GHz and four analog channels.
- Increase vertical resolution by four times with the 14-bit analog-to-digital converter (ADC) versus a 12-bit ADC.
- View and analyze your signals easily with the 10.1-inch capacitive touch screen.
- See smaller signals with a 50 µVRMS noise floor.
- Isolate signals in seconds with exclusive zone triggering.
- See more signal detail with the uncompromised 1.3 M waveform / second update rate.
- Benefit from all-new custom technology optimized for oscilloscope measurements.
- Capture more data with up to 100 Mpts memory.
- Experience a brand-new user interface with advanced capabilities, including split grids and bandwidth-limiting options.
- Expand your measurement capabilities with full upgradability; add bandwidth, system upgrades, and advanced application software at any time.
The HD304MSO oscilloscope provides a 14 bit ADC, 4 analog channels, 100 Mpts memory, 1,300,000 wfms/sec update rate, and a 10.1-in capacitive touch screen.
