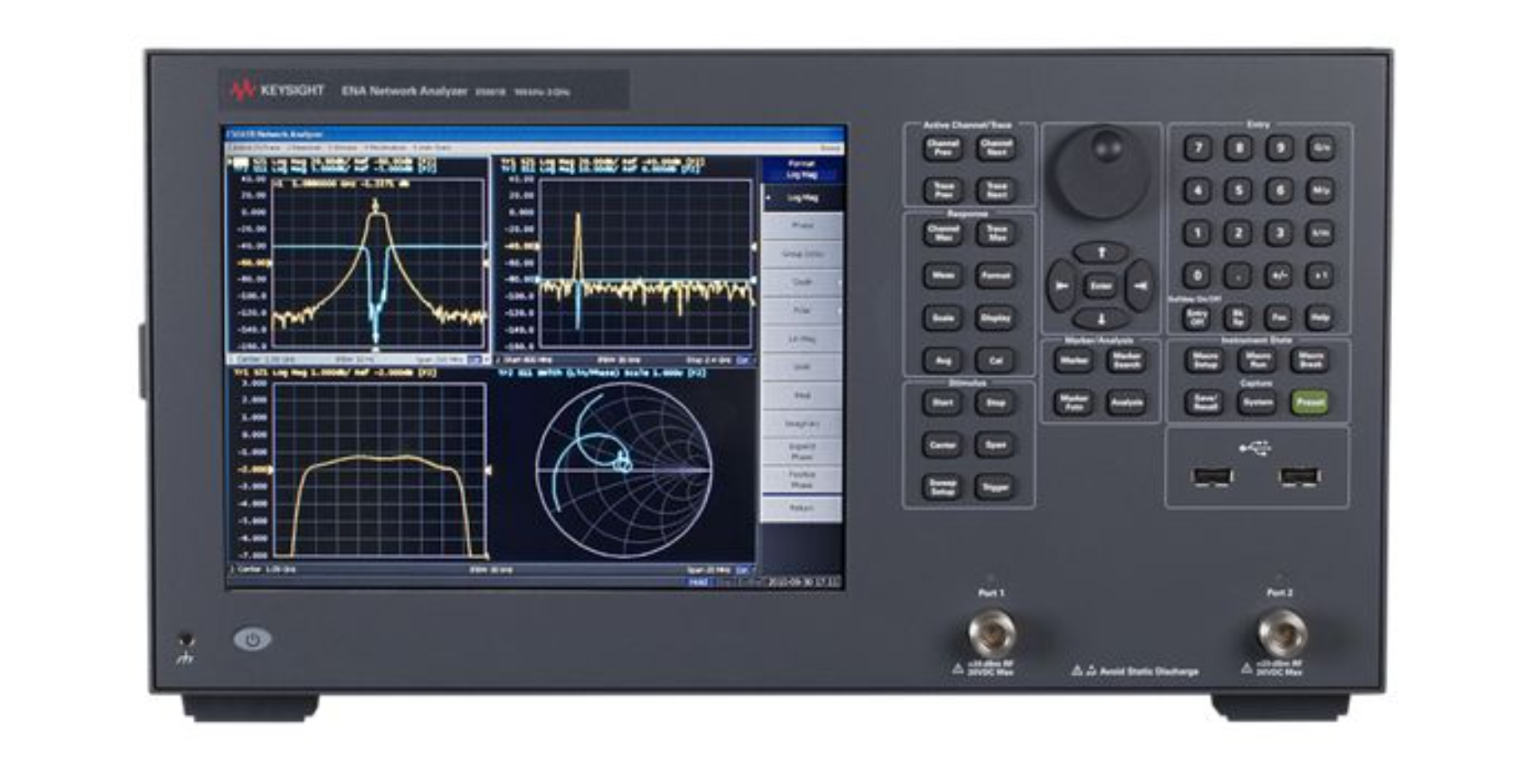

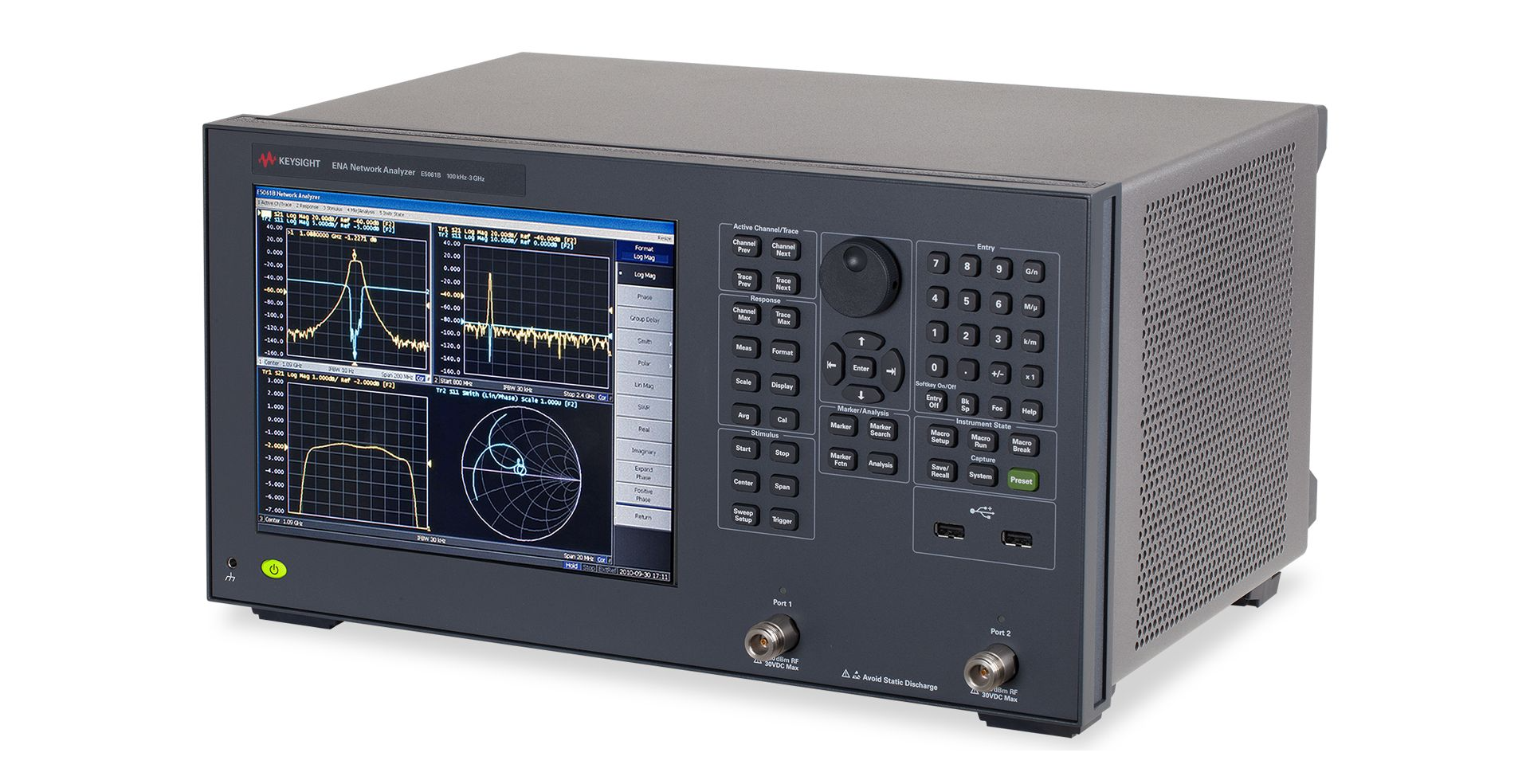

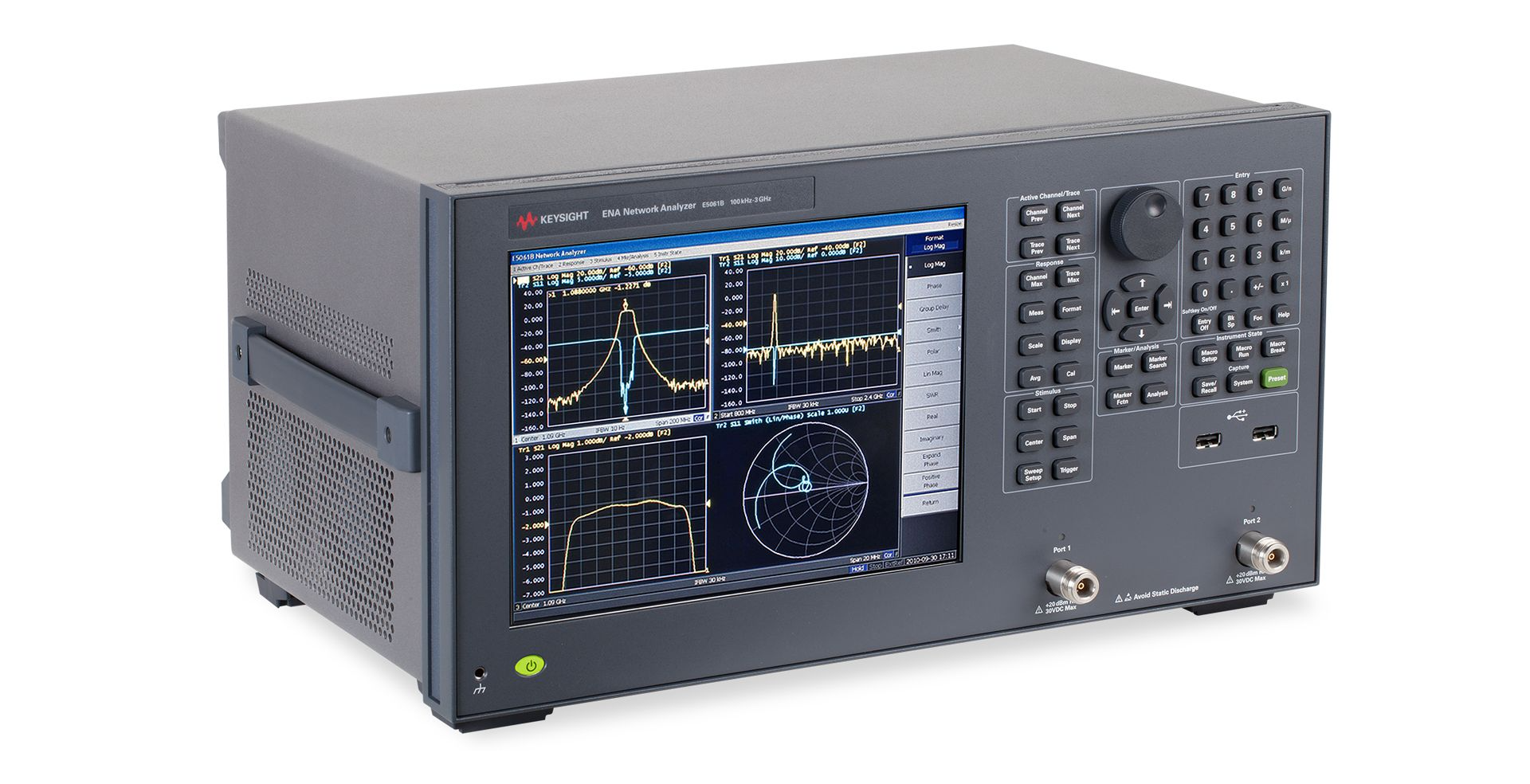

E5063A ENA Vector Network Analyzer
TF:
001729-HW-keysight-029
Overview
The Keysight E5063A ENA is an affordable benchtop vector network analyzer for testing simple passive components such as antennas, filters, cables, or connectors up to 18 GHz. It leverages the consistent measurement framework of the industry standard ENA Series to boost efficiency and productivity. It is ready to evolve as technologies change.
| Applications: | S-Parameters Return Loss Time Domain Insertion Loss/Gain |
| Components: | Antennas Printed Circuit Boards (PCB) Filters |
| Dynamic Range: | 117 dB |
| Instrument Type: | Benchtop |
| Maximum Number of Sources: | 1 |
| Number of Built-In Ports: | 2 |
| Output Power: | 0 dBm |
| Type: | Benchtop |
| VNA Type: | Benchtop |
| Best Speed at 201 Point, 1 Sweep: | 9 ms |
| Configurable Test Ports: | 0 |
| Form Factor: | Benchtop |
| Maximum frequency: | 18 GHz |
| Maximum Output Power: | 0 dBm |
| Number of Internal Sources: | 1 |
| Trace Noise: | 0.015 dB rms |
| VNA Series: | ENA |
